TR9WI2500LCPCIMR6B

Active

GlobTek, Inc.

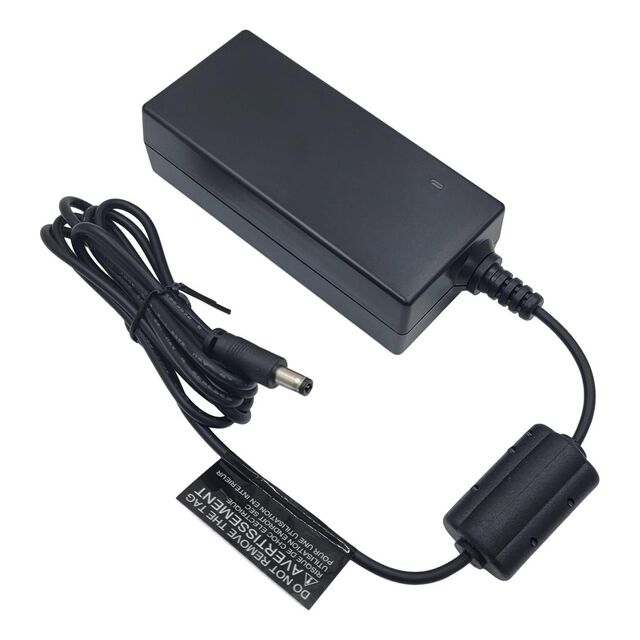

AC/DC DESKTOP ADAPTER 24V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9WI2500LCPCIMR6B

Applications	ITE (Commercial), Medical
Approval Agency	CE, cETLus, S-Mark, UKRSepro, VCCI, RCM, CB, CCC, EAC, PSE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.5 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C18
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	No Load Power Consumption [Max]	Input Connector	Region Utilized	Efficiency	Applications	Input Type	Cord Length	Cord Length	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Polarization	Form	Approval Agency	Power (Watts)	Cord Length	Output Connector [z]
GlobTek, Inc. TR9WI2500LCPCIMR6B	2.5 A	90 VAC	264 VAC	24 V	150 mW	IEC 320-C18	International	Level VI	ITE (Commercial) Medical	Cord	1.5 m	59 in	Barrel Plug	2.5 mm 5.5 mm	11 mm	-20 C	40 °C	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Positive Center	Desktop (Class II)	CB CCC CE cETLus EAC PSE RCM S-Mark UKRSepro VCCI	60 W
GlobTek, Inc. TR9WI2500CCPCIMR6B	2.5 A	90 VAC	264 VAC	24 V	150 mW	IEC 320-C18	International	Level VI	ITE (Commercial) Medical	Cord	47.2 in		Barrel Plug	2.1 mm 5.5 mm		-20 C	40 °C	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Positive Center	Desktop (Class II)	CB CCC CE cETLus EAC PSE RCM S-Mark UKRSepro VCCI	60 W	1.2 m	11 mm
GlobTek, Inc. TR9WI2500T00CIMR6B	2.5 A	90 VAC	264 VAC	24 V	150 mW	IEC 320-C18	International	Level VI	ITE (Commercial) Medical	Cord	47.2 in		1.3mm x 3.5mm Barrel Plug Kit			-20 C	40 °C	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm		Desktop (Class II)	CB CCC CE cETLus EAC PSE RCM S-Mark UKRSepro VCCI	60 W	1.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 60 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
