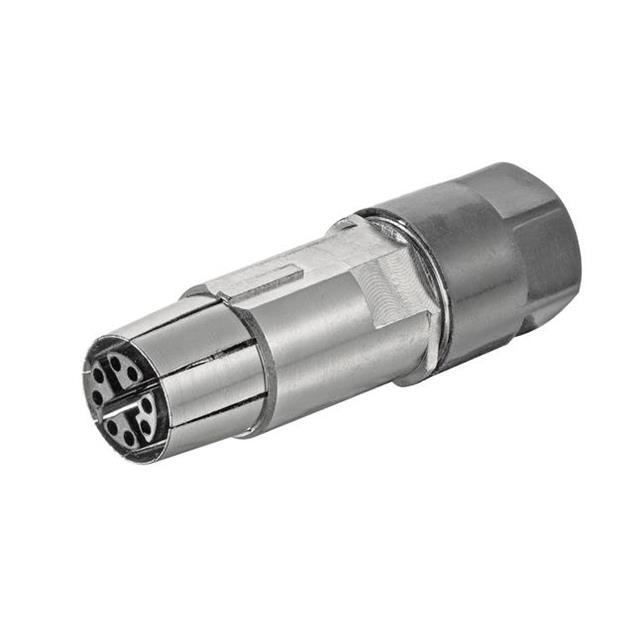

09148812805

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 8 CONTACTS, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 8 CONTACTS, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09148812805

Connector Type	Insert without Contacts
Current Rating (Amps)	0.5 A
Gender	Female
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions	8+Shield
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	32 V

Part	Current Rating (Amps)	Termination Style	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions	Housing Material	Connector Type	Gender	Contact Type
HARTING Technology Group 09148812805	0.5 A	Crimp	UL94 V-0	85 °C	-40 °C	32 V	8+Shield	Liquid Crystal Polymer (LCP)	Insert without Contacts	Female
HARTING Technology Group 09148812405	4 A	Crimp	UL94 V-0	85 °C	-40 °C	32 V	4+Shield	Liquid Crystal Polymer (LCP)	Insert without Contacts	Female	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts 8+Shield Position Crimp
