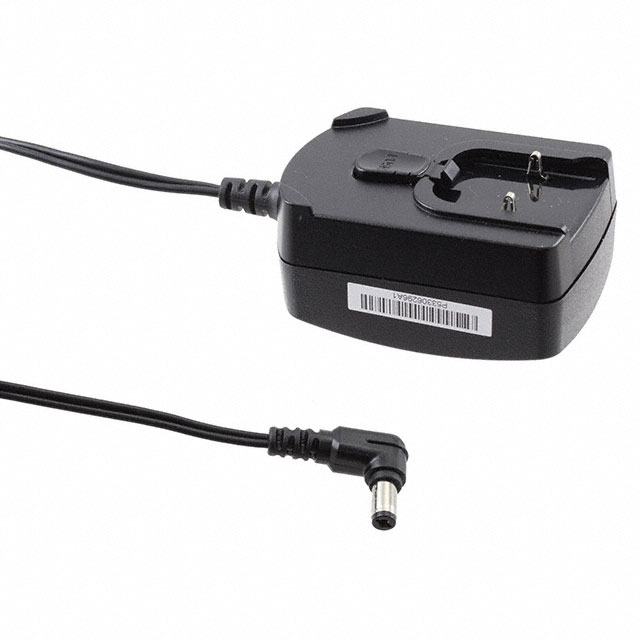

PSC15R-050-R-CR1

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 15W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Power (Watts)	Input Type	Efficiency	Form	Output Connector [z]	Output Connector [diameter]	Output Connector	Approval Agency	Voltage - Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	No Load Power Consumption	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Polarization	Operating Temperature [Max]	Input Connector	Weight	Weight	Output Connector [x]	Standard Number
Phihong USA PSC15R-090	1.67 A	15 W	Multi-Blade (Sold Separately)	Level VI	Wall Mount (Class II)	10 mm	2.1 mm 5.5 mm	Barrel Plug	CB CE cULus	9 V	45 mm	2.82 "	33 mm	1.77 "	71.7 mm	1.3 "	ITE (Commercial)	100 mW	1.5 m	59 in	90 VAC	264 VAC	International	Positive Center	40 °C	Multi-Blade	0.333 lb	151.05 g
Phihong USA PSC15R-060	2.5 A	15 W	Multi-Blade (Sold Separately)	Level VI	Wall Mount (Class II)	10 mm	2.1 mm 5.5 mm	Barrel Plug	CB CE cULus	5.9 V	45 mm	2.82 "	33 mm	1.77 "	71.7 mm	1.3 "	ITE (Commercial)	100 mW	1.5 m	59 in	90 VAC	264 VAC	International	Positive Center	40 °C	Multi-Blade	0.333 lb	151.05 g
Phihong USA PSC15R-050-R-CR1	3 A	15 W	Multi-Blade (Sold Separately)	Level VI	Wall Mount (Class II)		2.1 mm 5.5 mm	Barrel Plug R/A	AS/NZS cULus IEC	5 V	45 mm	2.82 "	33 mm	1.77 "	71.7 mm	1.3 "	ITE (Commercial)	100 mW	1.5 m	59 in	90 VAC	264 VAC	International	Positive Center	40 °C	Multi-Blade	0.333 lb	151.05 g	10 mm	60950-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 15 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
