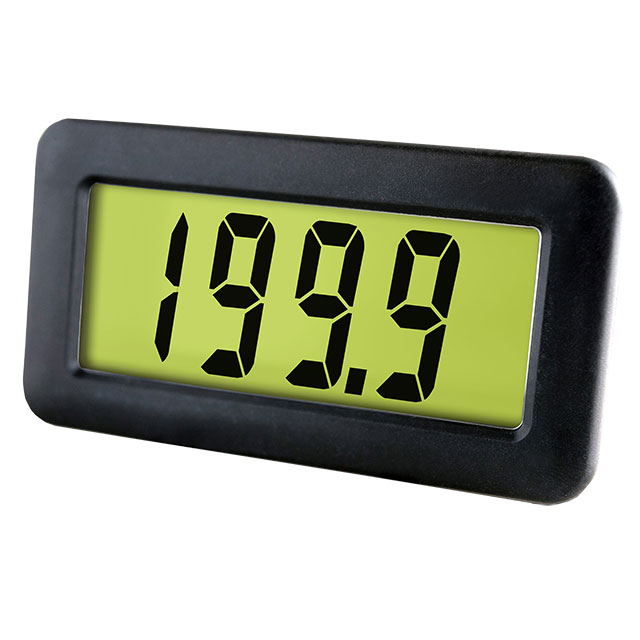

DPM 742-BL
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPM 742-BL
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPM 742-BL |
|---|---|
| Display Characters - Height [z] | 0.5 in |
| Display Characters - Height [z] | 12.7 mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Measuring Type | Current |
| Number of Characters Per Row | 3.5 |
| Output Type | Reference |
| Panel Cutout Dimensions [x] | 62 mm |
| Panel Cutout Dimensions [y] | 32 mm |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply [Max] | 5.6 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 115.49 | |
Description
General part information
DPM 742 Series
Ammeter LCD - Black Characters, Green Backlight Display Panel Mount
