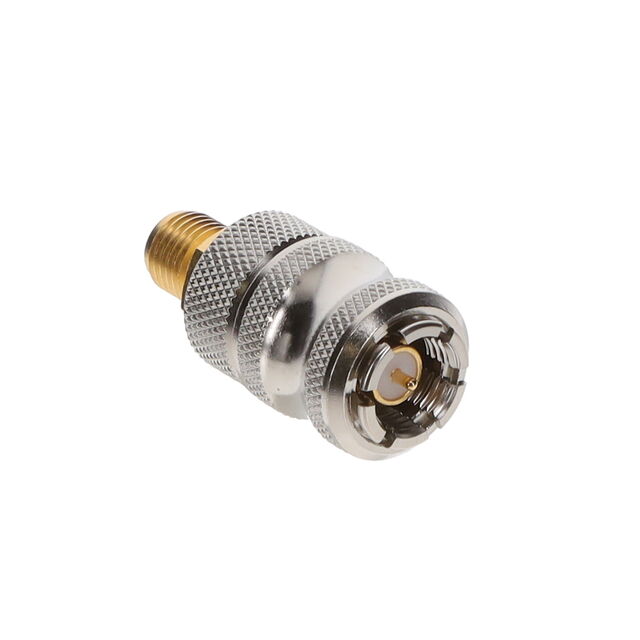

142-1901-831

Active

Cinch Connectivity Solutions Johnson

SMA, IN SERIES, JACK TO QUICK CO

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMA, IN SERIES, JACK TO QUICK CO

Technical Specifications

Parameters and characteristics for this part

Specification	142-1901-831

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Finish	Nickel, Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Adapter Series	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Convert From (Adapter End)	Body Finish	Conversion Type	Mounting Type	Adapter Type	Convert To (Adapter End)	Fastening Type	Center Contact Material	Center Contact Plating	Mating Cycles	Impedance	Style
Cinch Connectivity Solutions Johnson 142-1901-831	26.5 GHz	SMA to SMA	Brass	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	SMA Plug Male Pin	Gold Nickel	Same Series	Free Hanging (In-Line)	Plug to Jack	Female Socket SMA Jack	Snap-On Threaded	Beryllium Copper	Gold	1000	50 Ohms	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
