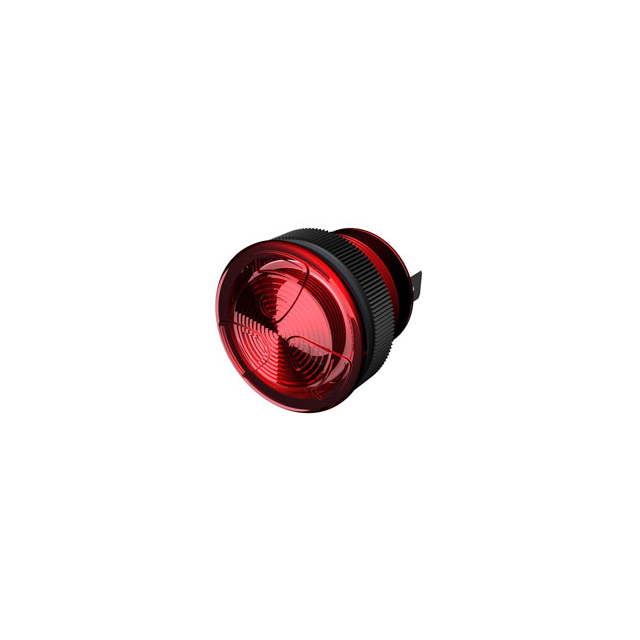

TLH-87R-930-Q

Active

Floyd Bell Inc

PANEL MOUNT RED CONTINUOUS ULTRA

Search across all available documentation for this part.

Active

Floyd Bell Inc

PANEL MOUNT RED CONTINUOUS ULTRA

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Type	Current	Voltage [Min]	Voltage [Max]	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Termination Style	Lens Size [diameter]	Lamp Color	Panel Cutout Shape	Lens Color	Current [Max]	Current [Min]
Floyd Bell Inc TLH-87B-930-Q	DC	LED	50 mA	9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Quick Connect	33 mm	Blue	Round	Blue
Floyd Bell Inc TLH-87R-930-S	DC	LED	50 mA	9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Screw Terminal	33 mm	Red	Round	Red
Floyd Bell Inc TLH-87W-930-Q	DC	LED	50 mA	9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Quick Connect	33 mm	White	Round	Colorless
Floyd Bell Inc TLH-87W-930-S	DC	LED	50 mA	9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Screw Terminal	33 mm	White	Round	Colorless
Floyd Bell Inc TLH-87Y-930-S	DC	LED	50 mA	9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Screw Terminal	33 mm	Yellow	Round	Yellow
Floyd Bell Inc TLH-87G-930-S	DC	LED	50 mA	9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Screw Terminal	33 mm	Green	Round	Green
Floyd Bell Inc TLH-87B-930-S	DC	LED	50 mA	9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Screw Terminal	33 mm	Blue	Round	Blue
Floyd Bell Inc TLH-87R-930-Q	DC	LED		9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Quick Connect	33 mm	Red	Round	Red	110 mA	50 mA
Floyd Bell Inc TLH-87G-930-Q	DC	LED		9 V	30 V	Diffused	26.8 mm	1.06 "	IP68	Quick Connect	33 mm	Green	Round	Green	110 mA	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.15

General part information

LED Panel Indicator Red Diffused 9V ~ 30V 50mA ~ 110mA Quick Connect

Technical documentation and resources

No documents available
