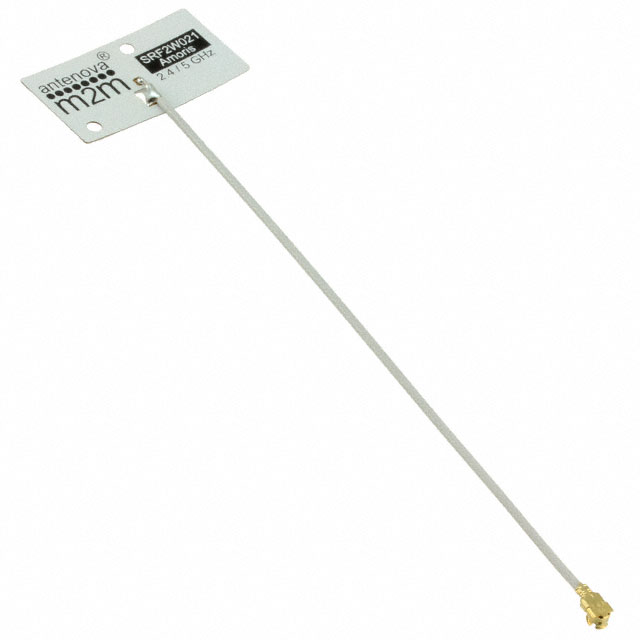

SRF2W021-50

Active

Antenova

RF ANT 2.4GHZ/5.4GHZ FLAT PATCH

Search across all available documentation for this part.

Active

Antenova

RF ANT 2.4GHZ/5.4GHZ FLAT PATCH

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Gain	Height (Max)	Height (Max) [Max]	RF Family/Standard	Mounting Type	Applications	VSWR	Frequency Range [Min]	Frequency Range [Max]	Return Loss	Features	Features	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Termination	Number of Bands
Antenova SRF2W021-100	Flat Patch	2.8 dBi 5.1 dBic	0.15 mm	0.006 in	WiFi	Adhesive	Wi-Fi	1.7	2.4 GHz 4.9 GHz	2.5 GHz 5.9 GHz	-14 dB -10 dB	Cable	100 mm	4 GHz	2 GHz	3 GHz	IPEX MHF1 U.FL (UMCC)	2
Antenova SRF2W021-50	Flat Patch	2.8 dBi 5.1 dBic	0.15 mm	0.006 in	WiFi	Adhesive	Wi-Fi	1.7	2.4 GHz 4.9 GHz	2.5 GHz 5.9 GHz	-14 dB -10 dB	Cable	50 mm	4 GHz	2 GHz	3 GHz	IPEX MHF1 U.FL (UMCC)	2
Antenova SRF2W021-150	Flat Patch	2.8 dBi 5.1 dBic	0.15 mm	0.006 in	WiFi	Adhesive	Wi-Fi	1.7	2.4 GHz 4.9 GHz	2.5 GHz 5.9 GHz	-14 dB -10 dB	Cable - 150mm		4 GHz	2 GHz	3 GHz	IPEX MHF1 U.FL (UMCC)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.59

General part information

RF ANTENNA Wi-Fi Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
