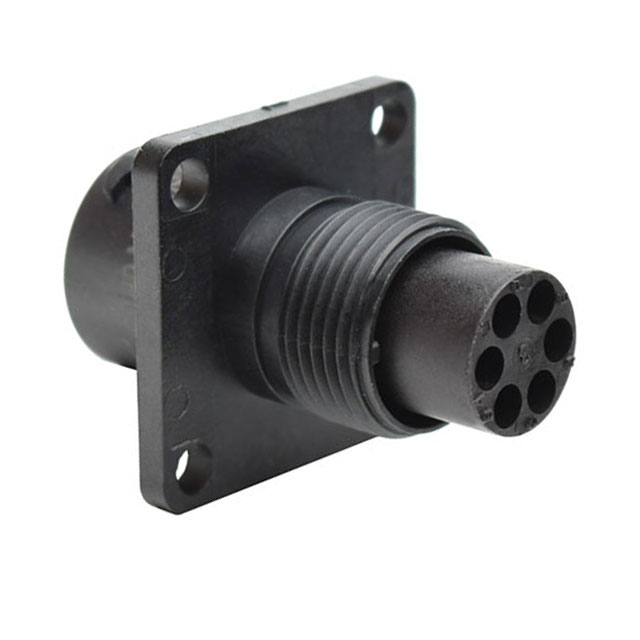

RTS010N6P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 6POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet +1

RTS010N6P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 6POS PNL MNT

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS010N6P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 Connector, 1 Gasket
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	10-6
Shielding	Unshielded
Type	For Male Pins

RTS010 Series

Part	Number of Positions	Contact Type	Note	Shielding	Housing Color	Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Contact Size	Contact Shape	Material Flammability Rating	Mounting Feature	Insert Material	Shell Size - Insert	Includes	Fastening Type	Orientation	Material	For Use With/Related Products	Shell Size - Insert	Accessory Type	Features	Color	Contact Size	Primary Material
Amphenol Sine Systems Corp RTS010N6S03	6	Crimp	Contacts Not Included	Unshielded	Black	For Female Sockets	125 °C	-40 °C	Receptacle Housing	IP67 IP69K	20	Circular	UL94 V-0	Flange	Thermoplastic	10-6	1 Connector 1 Gasket	Bayonet Lock	N
Amphenol Sine Systems Corp RTS010DCG																				Thermoplastic	Receptacle Connectors	10	Cap (Cover) Dust	Contains Strap with Ring Dust Tight Waterproof	Black
Amphenol Sine Systems Corp RTS010N3W3P03	6	Crimp	Contacts Not Included	Unshielded	Black	For Male Pins	125 °C	-40 °C	Receptacle Housing	IP67 IP69K		Circular	UL94 V-0	Flange	Thermoplastic	10-3W3		Bayonet Lock	N							16 (3) 20 (3)	Plastic
Amphenol Sine Systems Corp RTS010N4S03	4	Crimp	Contacts Not Included	Unshielded	Black	For Female Sockets	125 °C	-40 °C	Receptacle Housing	IP67 IP69K	16	Circular	UL94 V-0	Flange	Thermoplastic	10-4	1 Connector 1 Gasket	Bayonet Lock	N
Amphenol Sine Systems Corp RTS010N3S03		Crimp	Contacts Not Included	Unshielded	Black	For Female Sockets	125 °C	-40 °C	Receptacle Housing	IP67 IP69K	16	Circular	UL94 V-0	Flange	Thermoplastic	10-3	1 Connector 1 Gasket	Bayonet Lock	N
Amphenol Sine Systems Corp RTS010N4SHEC03	4	Crimp	Contacts Not Included	Unshielded	Black	For Female Sockets	125 °C	-40 °C	Receptacle Housing	IP67 IP69K	16	Circular	UL94 V-0	Flange	Thermoplastic	10-4		Bayonet Lock	N					Backshell
Amphenol Sine Systems Corp RTS010N2P03	4	Crimp	Contacts Not Included	Unshielded	Black	For Male Pins	125 °C	-40 °C	Receptacle Housing	IP67 IP69K		Circular	UL94 V-0	Flange	Thermoplastic	10-2	1 Connector 1 Gasket	Bayonet Lock	N							16 (2) 20 (2)
Amphenol Sine Systems Corp RTS010N3W3S03	6	Crimp	Contacts Not Included	Unshielded	Black	For Female Sockets	125 °C	-40 °C	Receptacle Housing	IP67 IP69K		Circular	UL94 V-0	Flange	Thermoplastic	10-3W3		Bayonet Lock	N							16 (3) 20 (3)	Plastic
Amphenol Sine Systems Corp RTS010N6P03	6	Crimp	Contacts Not Included	Unshielded	Black	For Male Pins	125 °C	-40 °C	Receptacle Housing	IP67 IP69K	20	Circular	UL94 V-0	Flange	Thermoplastic	10-6	1 Connector 1 Gasket	Bayonet Lock	N
Amphenol Sine Systems Corp RTS010N6SHEC03	6	Crimp	Contacts Not Included	Unshielded	Black	For Female Sockets	125 °C	-40 °C	Receptacle Housing	IP67 IP69K	20	Circular	UL94 V-0	Flange	Thermoplastic	10-6		Bayonet Lock	N					Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 4.78

Description

General part information

RTS010 Series

6 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

Eco|mate® Aquarius™ Flyer

Datasheet
