325311-10-0

Active

Curtis Industries

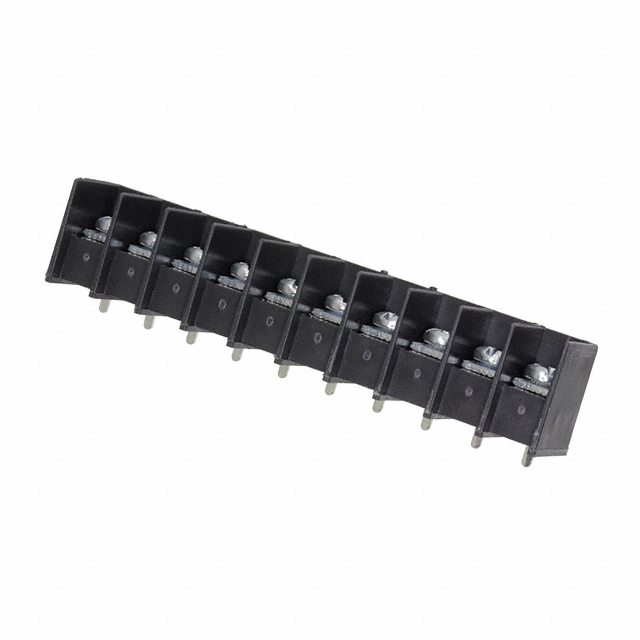

CONN BARRIER STRP 10CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325311-10-0

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325311-10-0

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Current Rating (Amps)	15 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	10
Number of Rows	1
Number of Wire Entries	10
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325311 Series

Part	Terminal Block Type	Bottom Termination	Mounting Type	Material Flammability Rating	Voltage Rating	Top Termination	Material - Insulation	Number of Rows	Number of Wire Entries	Current Rating (Amps)	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature	Barrier Type	Number of Circuits	Number of Wire Entries [custom]
Curtis Industries 325311-09-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	9	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)
Curtis Industries 325311-15-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	15	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	15
Curtis Industries 325311-23-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1		15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	23	23
Curtis Industries 325311-04-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	4	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	4
Curtis Industries 325311-12-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	12	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	12
Curtis Industries 325311-10-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	10	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	10
Curtis Industries 325311-02-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	2	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	2
Curtis Industries 325311-16-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	16	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	16
Curtis Industries 325311-07-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	7	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	7
Curtis Industries 325311-17-0	Barrier Block	PC Pin	Through Hole	UL94 V-0	300 VDC	Screws	Polypropylene (PP)	1	17	15 A	8.26 mm	0.325 in	14 AWG	22 AWG	105 C	3 Wall (Tri)	17

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.14
		10	$ 5.63
		30	$ 5.36
		50	$ 4.86

Description

General part information

325311 Series

10 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
