SDF-S15-203L011

Active

MH Connectors

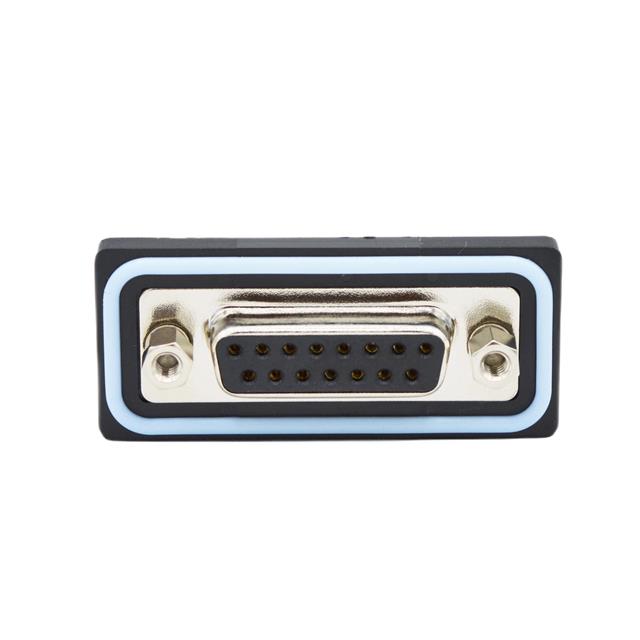

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER CUP

Search across all available documentation for this part.

Active

MH Connectors

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-S15-203L011

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Rows	Ingress Protection	Connector Style	Contact Type	Shell Size, Connector Layout	Number of Positions	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Contact Material	Shell Material, Finish	Current Rating (Amps)	Color	Connector Type	Contact Finish Thickness	Features
MH Connectors SDF-S15-203L012	Gold	-25 °C	85 °C	UL94 V-0	2	IP67 - Dust Tight Waterproof	D-Sub	Signal	2	15	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Brass	Nickel Plated Steel	5 A	Black	Receptacle Female Sockets
MH Connectors SDF-S15-103L011	Gold	-25 °C	85 °C	UL94 V-0	2	IP67 - Dust Tight Waterproof	D-Sub	Signal	2	15	Female Screwlock (4-40) Mating Side			Polybutylene Terephthalate (PBT)	Brass	Nickel Plated Steel	5 A	Black	Male Pins Plug	Flash	Grounding Indents
MH Connectors SDF-S15-203L011	Gold	-25 °C	85 °C	UL94 V-0	2	IP67 - Dust Tight Waterproof	D-Sub	Signal	2	15	Female Screwlock (4-40) Mating Side			Polybutylene Terephthalate (PBT)	Brass	Nickel Plated Steel	5 A	Black	Receptacle Female Sockets	Flash
MH Connectors SDF-S15-103L012	Gold	-25 °C	85 °C	UL94 V-0	2	IP67 - Dust Tight Waterproof	D-Sub	Signal	2	15	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Brass	Nickel Plated Steel	5 A	Black	Male Pins Plug		Grounding Indents

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
