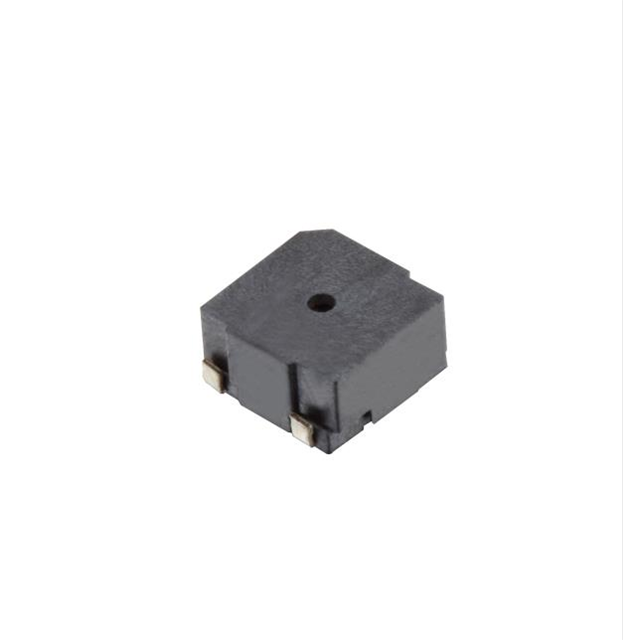

SFM-5540-03A
ActiveEast Electronics
BUZZER 3.6V 5MMX5MMTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFM-5540-03A
ActiveEast Electronics
BUZZER 3.6V 5MMX5MMTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM-5540-03A |
|---|---|
| Current - Supply | 100 mA |
| Frequency | 4 kHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Sound Pressure Level (SPL) | 78 dB |
| Termination | PC Pins |
| Voltage - Rated | 3.6 VDC |
| Voltage Range [Max] | 4.5 V |
| Voltage Range [Min] | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.70 | |
| 100 | $ 1.13 | |||
| 1000 | $ 0.92 | |||
Description
General part information
SFM-5540 Series
Buzzers 3.6 V 100mA 4kHz 78dB @ 3.6V, 10cm Through Hole PC Pins
