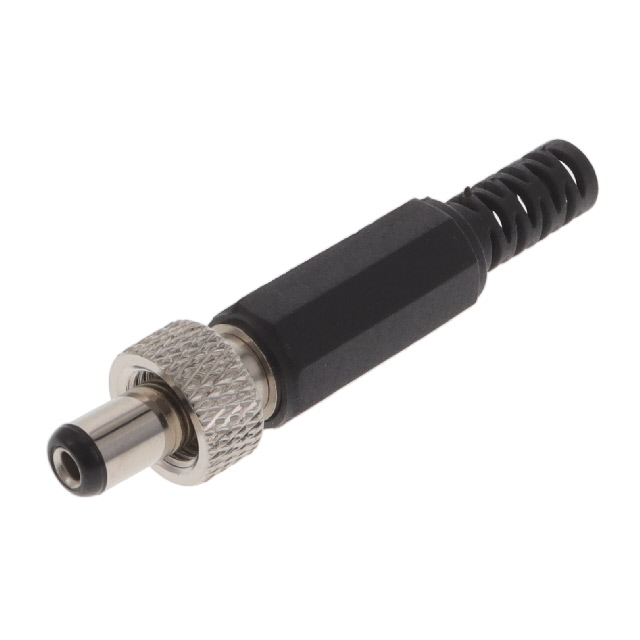

ADP-.083/.217/.433-HDW-SR
ActiveAdam Tech
2.0MM DC POWER PLUG KIT
Deep-Dive with AI
Search across all available documentation for this part.
ADP-.083/.217/.433-HDW-SR
ActiveAdam Tech
2.0MM DC POWER PLUG KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP-.083/.217/.433-HDW-SR |
|---|---|
| Actual Diameter | 0.083 ", 0.217 " |
| Actual Diameter | 2.1 mm, 5.5 mm |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 6 A |
| Gender | Female |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Includes | 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 0.083 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.1 mm |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Mating Length/Depth | 9.2 mm |
| Mating Length/Depth | 0.362 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.33 | |
| 10 | $ 4.84 | |||
| 25 | $ 4.37 | |||
| 50 | $ 4.05 | |||
| 100 | $ 3.76 | |||
| 250 | $ 3.41 | |||
| 500 | $ 3.18 | |||
| 1000 | $ 2.97 | |||
| 2500 | $ 2.72 | |||
Description
General part information
ADP-.083 Series
Power Barrel Connector Plug 2.10mm ID (0.083"), 5.50mm OD (0.217") Free Hanging (In-Line)
