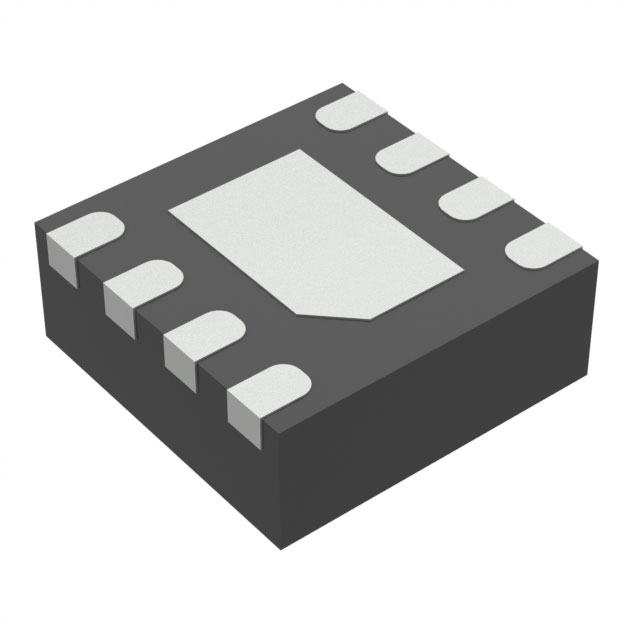

RT9829GQW
ActiveRichtek USA Inc.
IC DUAL PUSH-BUTTON RESET WDFN-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT9829GQW
ActiveRichtek USA Inc.
IC DUAL PUSH-BUTTON RESET WDFN-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT9829GQW |
|---|---|
| Mounting Type | Surface Mount |
| Number of Voltages Monitored | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Open Drain, Push-Pull |
| Package / Case | 8-WFDFN Exposed Pad |
| Reset | Active High/Active Low |
| Reset Timeout | 12.5 s |
| Supplier Device Package | 8-WDFN-SL (2x2) |
| Type | Reset Timer |
| Voltage - Threshold | Adjustable/Selectable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.56 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.60 | |||
| 25 | $ 0.56 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.29 | |||
| Tape & Reel (TR) | 2500 | $ 0.23 | ||
Description
General part information
RT9829 Series
Supervisor Open Drain, Push-Pull 2 Channel 8-WDFN-SL (2x2)
Documents
Technical documentation and resources
