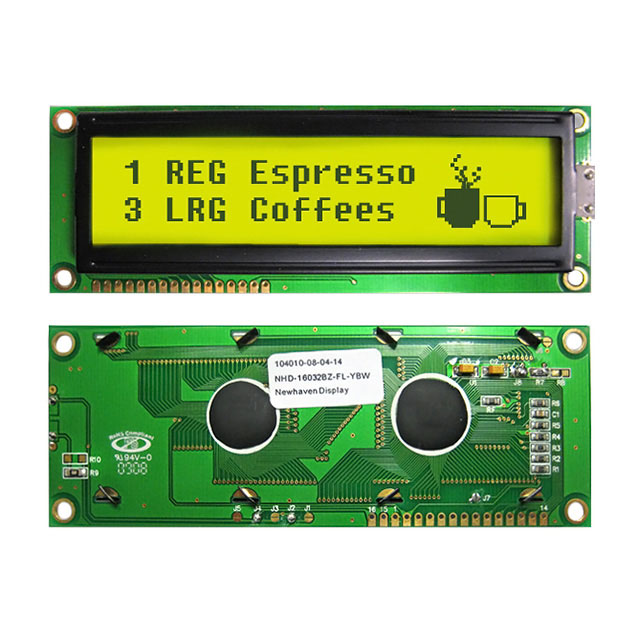

NHD-16032BZ-FL-YBW

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 160X32 Y/G TRANSFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 160X32 Y/G TRANSFL

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [z]	Viewing Area [x]	Background Color	Display Mode	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels [x]	Dot Pixels [y]	Backlight	Interface	Interface	Display Type	Graphics Color	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]	Viewing Area [y]
Newhaven Display Intl NHD-16032AZ-NSW-BBW	16.4 mm	64.5 mm	Blue	Transmissive	0.54 mm	0.54 mm	160	32	LED - White	Parallel	24 Bit	STN - Super-Twisted Nematic	White	0.49 mm	0.49 mm
Newhaven Display Intl NHD-16032BZ-FL-YBW		99 mm	Yellow (Black - Inverted)	Transflective			160	32		Parallel/Serial		STN - Super-Twisted Nematic	Black			0.56 mm	0.55 mm	24 mm
Newhaven Display Intl NHD-16032AZ-FL-YBW	22 mm		Yellow (Black - Inverted)	Transflective	0.54 mm	0.54 mm	160	32		Parallel 8-Bit		STN - Super-Twisted Nematic	Black	0.49 mm	0.49 mm			92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective Black (Yellow - Inverted) STN - Super-Twisted Nematic Parallel/Serial 160 x 32
