892-058-523-208

Active

EDAC Inc.

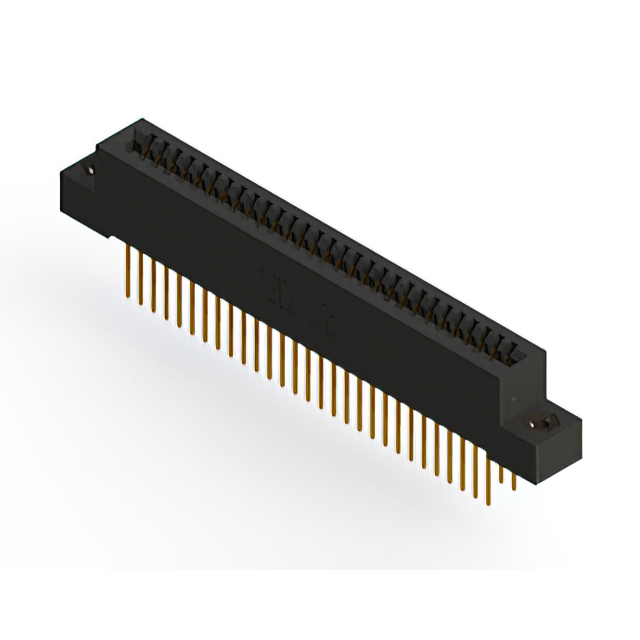

2.54MM STRAIGHT 58P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-058-523-208

Active

EDAC Inc.

2.54MM STRAIGHT 58P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-058-523-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-058 Series

...

Part	Number of Positions	Mounting Type	Contact Finish	Flange Feature	Material - Insulation	Contact Type	Gender	Pitch [x]	Pitch [x]	Termination	Read Out	Card Type	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Rows	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Features	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]
EDAC Inc. 892-058-540-207	58	Through Hole	Gold	Flush Mount M3 Threaded Insert Top Opening	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Wire Wrap	Dual	Non Specified - Dual Edge	29	125 °C	-40 °C	Black	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 892-058-541-208	58	Through Hole	Gold	4-40 Flush Mount Threaded Insert Top Opening	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Wire Wrap	Dual	Non Specified - Dual Edge	29	125 °C	-40 °C	Black	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 892-058-555-204	58	Board Edge Straddle Mount	Gold	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Solder	Dual	Non Specified - Dual Edge	29	125 °C	-40 °C	Black	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy	Card Extender	3.96 mm	0.156 in
EDAC Inc. 892-058-542-203	58	Through Hole	Gold	Floating Bobbin Flush Mount	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Wire Wrap	Dual	Non Specified - Dual Edge	29	125 °C	-40 °C	Black	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy		2.95 mm	0.116 in
EDAC Inc. 892-058-541-112	58	Through Hole	Gold	Flush Mount Side Opening Unthreaded	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Wire Wrap	Single	Non Specified - Single Edge		125 °C	-40 °C	Black	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy		3.25 mm	0.128 "	58
EDAC Inc. 892-058-542-204	58	Through Hole	Gold	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Wire Wrap	Dual	Non Specified - Dual Edge	29	125 °C	-40 °C	Black	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy		3.96 mm	0.156 in
EDAC Inc. 892-058-559-107	58	Through Hole Right Angle	Gold	Flush Mount M3 Threaded Insert Top Opening	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Solder	Single	Non Specified - Single Edge		125 °C	-40 °C	Black	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy				58
EDAC Inc. 892-058-544-103	58	Through Hole	Gold	Floating Bobbin Flush Mount	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Wire Wrap	Single	Non Specified - Single Edge		125 °C	-40 °C	Black	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy		2.95 mm	0.116 in	58
EDAC Inc. 892-058-521-201	58	Through Hole	Gold		Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Solder	Dual	Non Specified - Dual Edge	29	125 °C	-40 °C	Black	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 892-058-523-208	58	Through Hole	Gold	4-40 Flush Mount Threaded Insert Top Opening	Polyphenylene Sulfide (PPS)	Cantilever	Female	2.54 mm	0.1 in	Solder	Dual	Non Specified - Dual Edge	29	125 °C	-40 °C	Black	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 85.34
LCSC	Piece	1	$ 43.94
		200	$ 17.01
		500	$ 16.41
		1000	$ 16.11

Description

General part information

892-058 Series

58 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
