5CGTFD9E5F35I7N

Active

Altera

FPGA CYCLONE® V GT FAMILY 301000 CELLS 28NM TECHNOLOGY 1.1V 1152-PIN FBGA

Search across all available documentation for this part.

Active

Altera

FPGA CYCLONE® V GT FAMILY 301000 CELLS 28NM TECHNOLOGY 1.1V 1152-PIN FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	5CGTFD9E5F35I7N

Mounting Type	Surface Mount
Number of I/O	560
Number of Logic Elements/Cells	301000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C

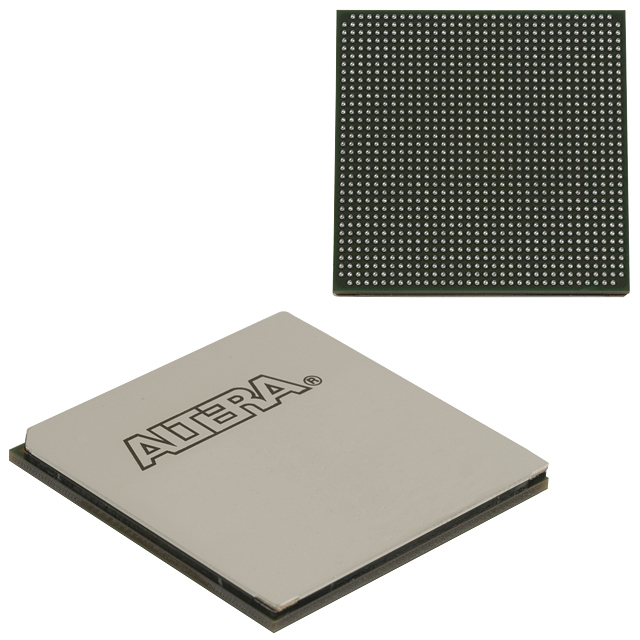

Package / Case	1152-BGA
Supplier Device Package	1152-FBGA (35x35)
Total RAM Bits	14251008
Voltage - Supply [Max]	1.13 V
Voltage - Supply [Min]	1.07 V

Part	Number of I/O	Number of Logic Elements/Cells	Package / Case	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Total RAM Bits
Altera 5CGTFD9E5F31I7N	480	301000	896-BGA	Surface Mount	896-FBGA (31x31)	100 °C	-40 C	1.07 V	1.13 V	14251008
Altera 5CGTFD9E5F35I7N	560	301000	1152-BGA	Surface Mount	1152-FBGA (35x35)	100 °C	-40 C	1.07 V	1.13 V	14251008
Altera 5CGTFD9A5U19C7N	240	301000	484-FBGA	Surface Mount	484-UBGA (19x19)	85 °C	0 °C	1.07 V	1.13 V	14251008

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	24	$ 1024.20
Digikey	Tray	24	$ 957.21

General part information

Cyclone® V GT Field Programmable Gate Array (FPGA) IC 560 14251008 301000 1152-BGA
