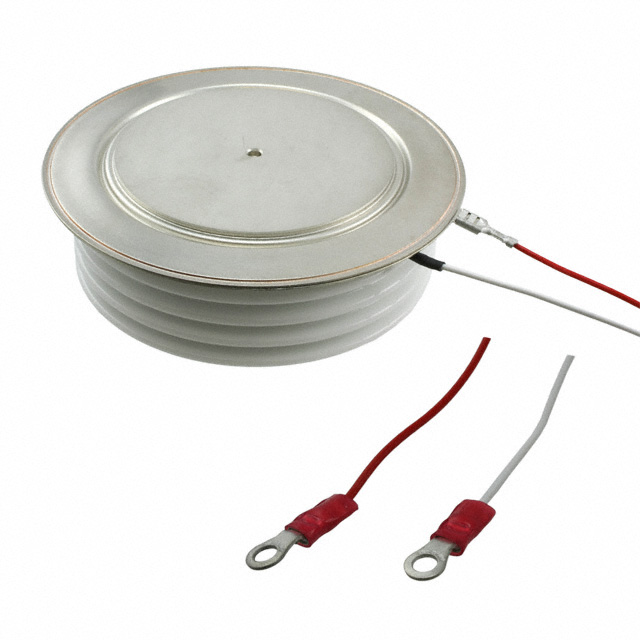

C770L

Unknown

Powerex Inc.

THYRISTOR FAST SW 2000V 2100A

Search across all available documentation for this part.

Unknown

Powerex Inc.

THYRISTOR FAST SW 2000V 2100A

Technical Specifications

Parameters and characteristics for this part

Specification	C770L

Current - Gate Trigger (Igt) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	38000 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	35000 A
Current - On State (It (AV)) (Max) [Max]	2100 A
Current - On State (It (RMS)) (Max)	3300 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-200AF
Structure	Single
Voltage - Off State	2 kV

Part	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Structure	Current - On State (It (RMS)) (Max)	Package / Case	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type
Powerex Inc. C770L	2 kV	2100 A	150 °C	-40 °C	Single	3300 A	TO-200AF	1 SCR	38000 A	35000 A	300 mA	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 2 kV 3300 A Single Chassis Mount TO-200AF
