1285-6003-TD

Active

Amphenol SV Microwave

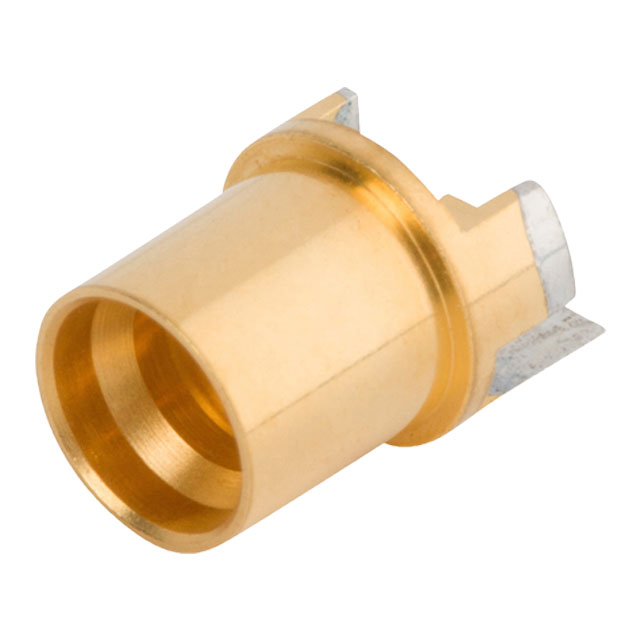

CONN SMP PLUG STR 50OHM EDGEMNT

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMP PLUG STR 50OHM EDGEMNT

Technical Specifications

Parameters and characteristics for this part

Specification	1285-6003-TD

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Limited Detent
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Shield Termination	Solder

Part	Shield Termination	Features	Body Finish	Center Contact Material	Number of Ports	Impedance	Dielectric Material	Mating Cycles	Housing Color	Mounting Type	Contact Termination	Fastening Type	Center Contact Plating	Connector Type	Frequency - Max [Max]	Body Material
Amphenol SV Microwave 1285-6003	Solder	Limited Detent	Gold	Beryllium Copper	1	50 Ohms	Polytetrafluoroethylene (PTFE)	500	Gold	Board Edge End Launch	Solder	Snap-On	Gold	Male Pin Plug	18 GHz	Stainless Steel
Amphenol SV Microwave 1285-6002	Solder	Full Detent	Gold	Beryllium Copper	1	50 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Board Edge End Launch	Solder	Snap-On	Gold	Male Pin Plug	18 GHz	Stainless Steel
Amphenol SV Microwave 1285-6003-TD	Solder	Limited Detent	Gold	Beryllium Copper	1	50 Ohms	Polytetrafluoroethylene (PTFE)	500	Gold	Board Edge End Launch	Solder	Snap-On	Gold	Male Pin Plug		Stainless Steel
Amphenol SV Microwave 1285-6004	Solder	Smooth Bore	Gold	Beryllium Copper	1	50 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Board Edge End Launch	Solder	Snap-On	Gold	Male Pin Plug	18 GHz	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMP Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Solder
