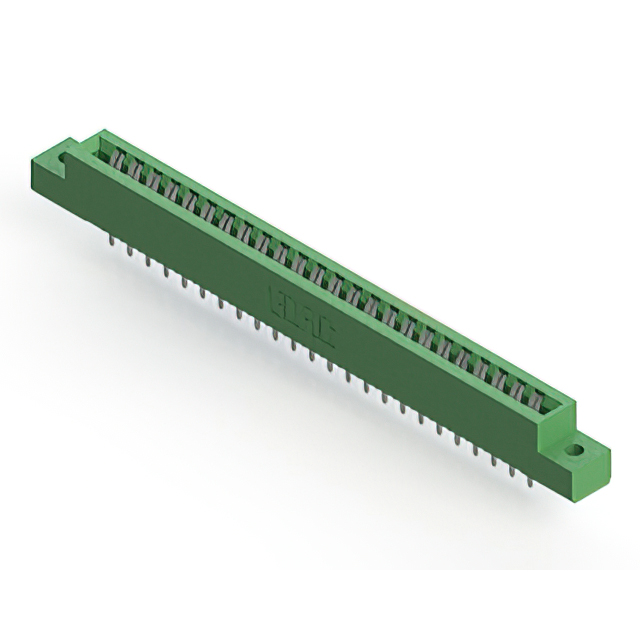

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
316-024-420-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-024-420-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
316-024 Series
| Part | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Rows | Termination Rows | Color | Material - Insulation | Contact Type | Pitch [x] | Pitch [x] | Contact Material | Contact Finish | Mounting Type | Read Out | Number of Positions | Card Type | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | |||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | |||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Dual | 56 | Non Specified - Dual Edge | ||||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | |||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | Card Guides | ||||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Dual | 56 | Non Specified - Dual Edge | Card Guides | |||||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | Card Guides | ||||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Gold | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Gold | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | |
EDAC Inc. | 24 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Female | 2 | 1 | Green | Polyester Thermoplastic | Cantilever | 0.156 in | 3.96 mm | Copper Alloy | Tin | Panel Mount Through Hole | Dual | 56 | Non Specified - Dual Edge | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-024 Series
56 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
