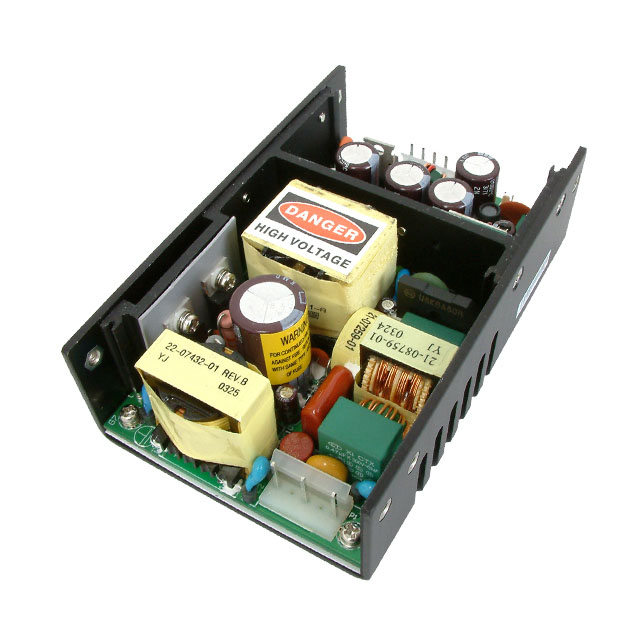

VSUU-150-9

CUI Inc.

AC/DC CONVERTER 9V 144W

Deep-Dive with AI

Search across all available documentation for this part.

VSUU-150-9

CUI Inc.

AC/DC CONVERTER 9V 144W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VSUU-150-9

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	16 A
Efficiency	80 %
Features	PFC, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	144 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	81.6 mm
Size / Dimension [y]	3.21 in
Size / Dimension [z]	41.2 mm
Size / Dimension [z]	1.62 in
Standard Number	55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	9 V

VSUU-150 Series

Part	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Applications	Standard Number	Mounting Type	Approval Agency	Voltage - Output 1	Operating Temperature [Max]	Type	Number of Outputs	Efficiency	Current - Output 1
CUI Inc. VSUU-150-24	4.242 kV	90 VAC	264 VAC	150 W	81.6 mm	5 in	127 mm	41.2 mm	3.21 in	1.62 in	PFC Universal Input	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Chassis Mount	CB Scheme EN IEC SIQ TUV UL	24 V	70 °C	Open Frame	1	80 %	6.25 A
CUI Inc. VSUU-150-18	4.242 kV	90 VAC	264 VAC	150 W	81.6 mm	5 in	127 mm	41.2 mm	3.21 in	1.62 in	PFC Universal Input	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Chassis Mount	CB Scheme EN IEC SIQ TUV UL	18 V	70 °C	Open Frame	1	80 %	8.33 A
CUI Inc. VSUU-150-9	4.242 kV	90 VAC	264 VAC	144 W	81.6 mm	5 in	127 mm	41.2 mm	3.21 in	1.62 in	PFC Universal Input	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Chassis Mount	CB Scheme EN IEC SIQ TUV UL	9 V	70 °C	Open Frame	1	80 %	16 A
CUI Inc. VSUU-150-30	4.242 kV	90 VAC	264 VAC	150 W	81.6 mm	5 in	127 mm	41.2 mm	3.21 in	1.62 in	PFC Universal Input	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Chassis Mount	CB Scheme EN IEC SIQ TUV UL	30 V	70 °C	Open Frame	1	80 %	5 A
CUI Inc. VSUU-150-36	4.242 kV	90 VAC	264 VAC	150 W	81.6 mm	5 in	127 mm	41.2 mm	3.21 in	1.62 in	PFC Universal Input	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Chassis Mount	CB Scheme EN IEC SIQ TUV UL	36 V	70 °C	Open Frame	1	80 %	4.17 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 169.13

Description

General part information

VSUU-150 Series

Open Frame AC DC Converters 1 Output 9V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
