TR9CE9000YL4CIMR6B

Active

GlobTek, Inc.

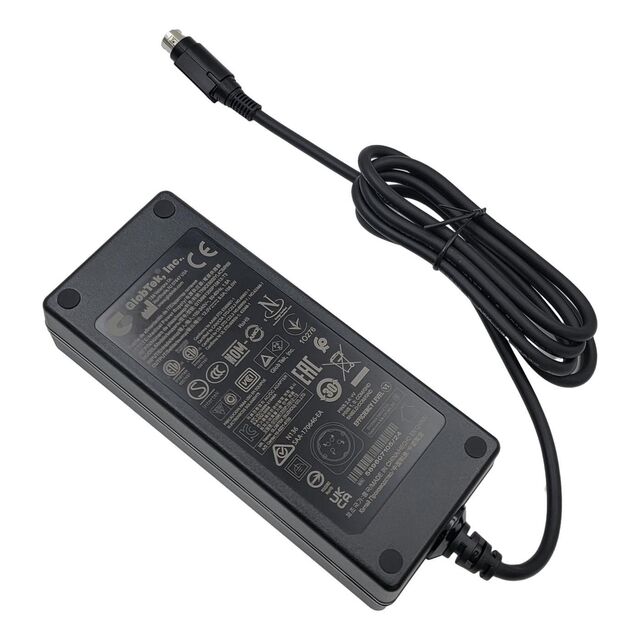

AC/DC DESKTOP ADAPTER 12V 108W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 108W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE9000YL4CIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CB, CE, S-Mark, cETLus, VCCI, BSMI, UKRSepro, CCC, EAC
Cord Length	1.2 m
Cord Length	47.2 in
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	108 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	62368-1, 60601-1-11, 60601-1-2, 61347-1, 60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Region Utilized	Input Connector	Voltage - Output	Applications	No Load Power Consumption [Max]	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector	Form	Input Type	Approval Agency	Power (Watts)	Polarization	Output Connector [diameter]	Output Connector [z]
GlobTek, Inc. TR9CE9000YL4CIMR6B	International	IEC 320-C14	12 V	Household Appliances ITE (Commercial) Medical	150 mW	1.2 m	47.2 in	-20 C	40 °C	Level VI	60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	90 VAC	264 VAC	4 Pin	Power DIN	Desktop (Class I)	Cord	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	108 W
GlobTek, Inc. TR9CE9000LRP-IM(R6B)	International	IEC 320-C14	12 V	Household Appliances ITE (Commercial) Medical	150 mW	1.2 m	47.2 in	-10 °C	40 °C	CoC Tier 2 Level VI		149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	90 VAC	264 VAC		Barrel Plug R/A	Desktop (Class I)	Cord	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	108 W	Positive Center	2.5 mm 5.5 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 108 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
