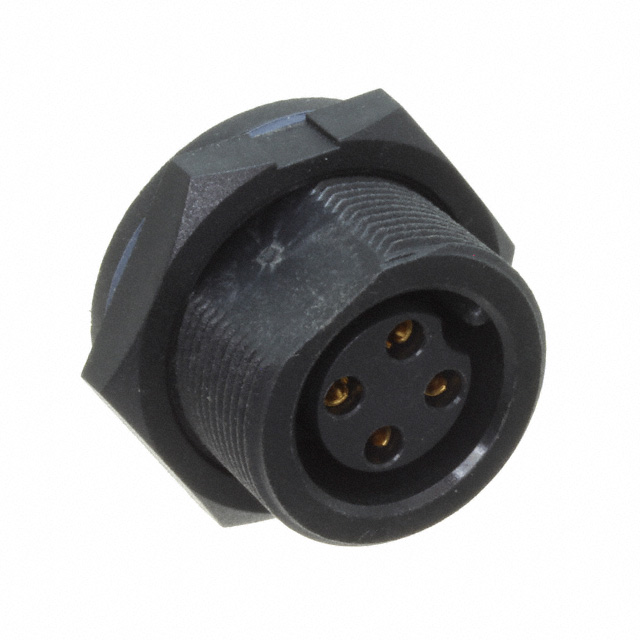

ACB-04PMFS-SC7001

Active

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	ACB-04PMFS-SC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Shell Size - Insert	Primary Material	Fastening Type	Current Rating (Amps)	Orientation	Mounting Feature	Ingress Protection	Shell Material	Insert Material	Contact Finish - Mating	Contact Material	Number of Positions	Connector Type	Shielding	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating
Amphenol LTW ACB-04PMFS-LC7001	C	Plastic	Bayonet Lock	10 A	Keyed	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Gold	Copper Alloy	4	Receptacle Female Sockets	Unshielded	Black	250 VAC	-40 °C	105 ░C	UL94 V-0
Amphenol LTW ACB-04PMFS-SC7001	C	Plastic		10 A	Keyed	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Gold	Copper Alloy	4	Receptacle Female Sockets	Unshielded	Black	300 VDC	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
