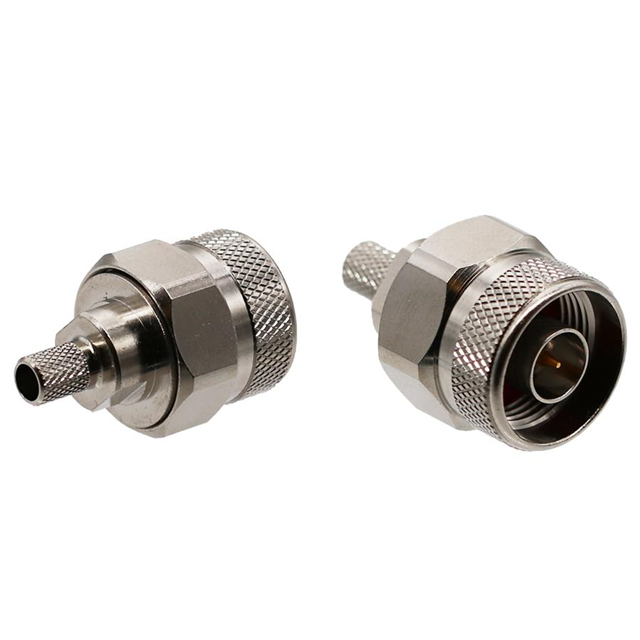

138-0414-001

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, LMR-240,

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, LMR-240,

Technical Specifications

Parameters and characteristics for this part

Specification	138-0414-001

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	550 VDC

Part	Impedance	Voltage Rating	Number of Ports	Contact Termination	Connector Style	Insertion Loss	Center Contact Material	Housing Color	Mounting Type	Body Material	Dielectric Material	Cable Group	Mating Cycles	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Finish	Connector Type	Frequency - Max [Max]
Cinch Connectivity Solutions Johnson 138-0414-001	50 Ohms	550 VDC	1	Crimp	N Type	0.1 dB	Phosphor Bronze	Silver	Free Hanging (In-Line)	Brass	Polytetrafluoroethylene (PTFE)	LMR-240	500	Crimp	-65 ░C	165 °C	Gold	Nickel	Male Pin Plug	3 GHz
