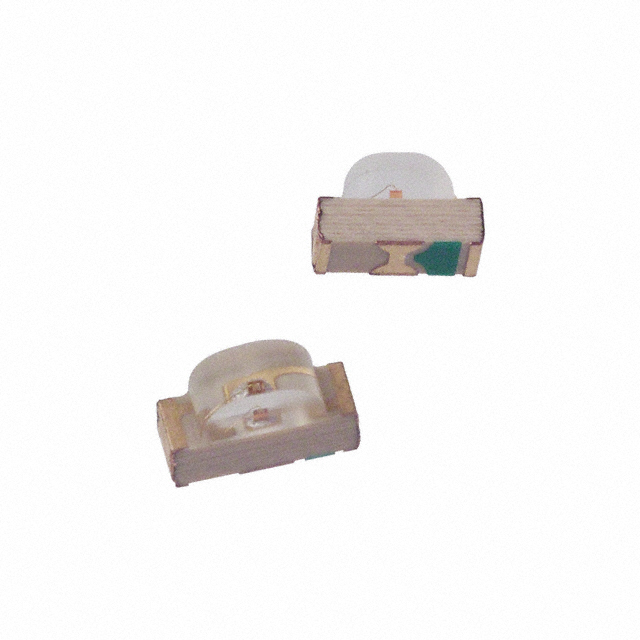

HSMG-C660
ObsoleteBroadcom Limited
LED GREEN DIFF CHIP SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMG-C660
ObsoleteBroadcom Limited
LED GREEN DIFF CHIP SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMG-C660 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | White |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 9 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 155 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 572 nm |
| Wavelength - Peak | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HSMG-C660 Series
Green 572nm LED Indication - Discrete 2.2V 2-SMD, No Lead
