ELFH06250

Active

AMPHENOL PCD

TERM BLOCK HDR 6POS VERT 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 6POS VERT 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH06250

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Header Orientation	Vertical
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	6
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Number of Positions	Pitch [x]	Pitch [x]	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Housing Material	Termination Style	Voltage - UL	Insulation Height	Insulation Height	Positions Per Level	Header Orientation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Levels	Contact Mating Finish	Color	Type
AMPHENOL PCD ELFH06210E
AMPHENOL PCD ELFH06220	6	0.2 in	5.08 mm	3.94 mm	0.155 in	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	300 V	8.1 mm	0.319 in	6	90° Right Angle	Brass	-40 °C	105 ░C	Through Hole	1	Tin	Black	Header Male Pins Shrouded (2 Side)
AMPHENOL PCD ELFH0625GE
AMPHENOL PCD ELFH06250	6	0.2 in	5.08 mm			UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	300 V	8.1 mm	0.319 in	6	Vertical	Brass	-40 °C	105 ░C	Through Hole	1	Tin	Black	Header Male Pins Shrouded (4 Side)
AMPHENOL PCD ELFH06280E
AMPHENOL PCD ELFH0629G
AMPHENOL PCD ELFH0624G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

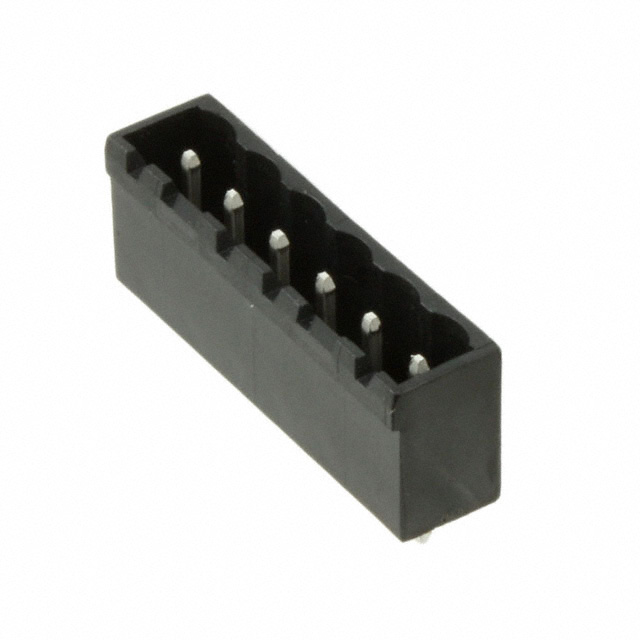

6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
