1001-1551-002

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CLAMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CLAMP T

Technical Specifications

Parameters and characteristics for this part

Specification	1001-1551-002

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Cable Group	Number of Ports	Body Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Housing Color	Frequency - Max [Max]	Contact Termination	Dielectric Material	Connector Type	Shield Termination	Insertion Loss	Connector Style	Voltage Rating	Center Contact Material	Mounting Type	Center Contact Plating	Mating Cycles	Cable Group
Radiall USA, Inc. 1001-1551-005	RG-178DS	1	Brass	50 Ohms	-65 ░C	165 °C	Gold	Gold	10 GHz	Solder	Polytetrafluoroethylene (PTFE)	Jack Male Pin	Clamp	0.25 dB	SMC	250 VDC	Brass	Free Hanging (In-Line)	Gold	500
Radiall USA, Inc. 1001-1551-002	RG-178	1	Brass	50 Ohms	-65 ░C	165 °C	Gold	Gold	10 GHz	Solder	Polytetrafluoroethylene (PTFE)	Jack Male Pin	Clamp	0.25 dB	SMC	250 VDC	Brass	Free Hanging (In-Line)	Gold	500	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 21.79

General part information

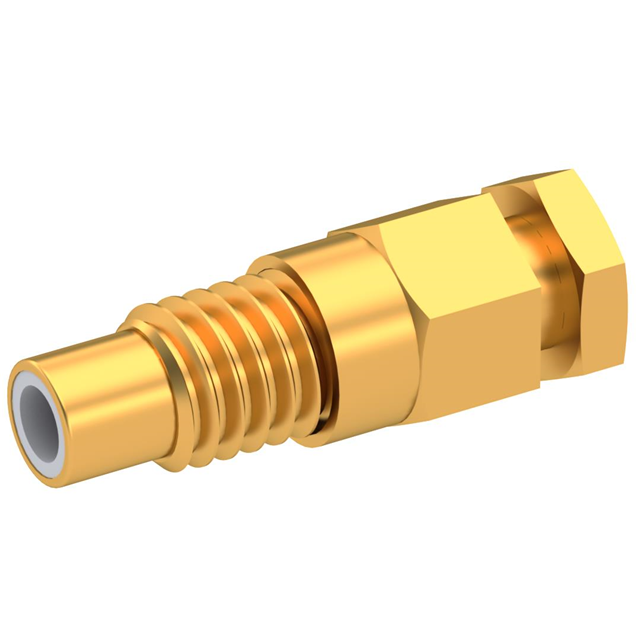

SMC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
