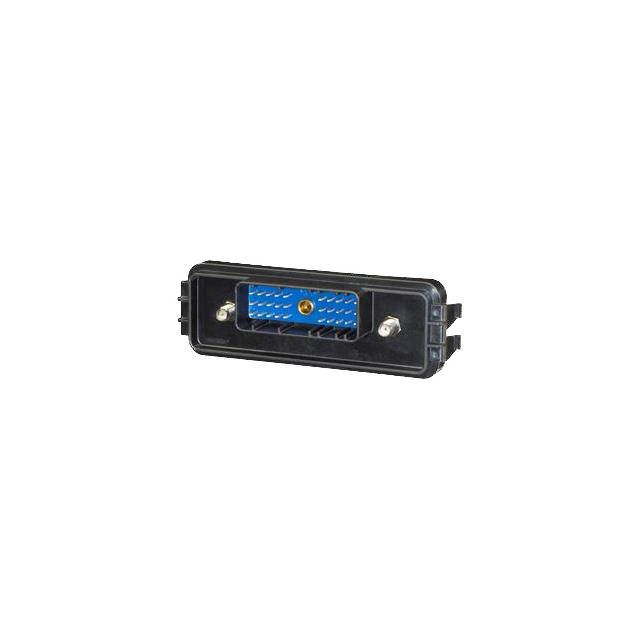

581 06 30 010

Active

Cinch Connectivity Solutions Trompeter

CONN HEADER R/A 32POS

Deep-Dive with AI

Search across all available documentation for this part.

581 06 30 010

Active

Cinch Connectivity Solutions Trompeter

CONN HEADER R/A 32POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	581 06 30 010

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Latch Lock
Features	Ferrite Filter
Ingress Protection	IP69K, IP67
Insulation Color	Black
Insulation Material	Polymer, Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	32 positions
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

581 06 30 Series

Part	Contact Finish - Post	Contact Length - Post	Contact Length - Post [x]	Connector Type	Ingress Protection	Insulation Material	Contact Shape	Shrouding	Features	Style	Applications	Termination	Contact Finish - Mating	Fastening Type	Current Rating (Amps)	Mounting Type	Contact Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Number of Positions	Insulation Color	Number of Rows
Cinch Connectivity Solutions Trompeter 5810630004	Tin	3.2 mm	0.126 in	Header	IP67 IP69K	Polymer Glass Filled	Circular	Shrouded - 4 Wall	Ferrite Filter	Board to Cable/Wire	Automotive	Solder	Gold	Latch Lock	10 A	Panel Mount Right Angle Through Hole	Male Pin	Brass	85 °C	-40 °C	All	31	Black	3
Cinch Connectivity Solutions Trompeter 5810630006	Tin	3.2 mm	0.126 in	Header	IP67 IP69K	Polymer Glass Filled	Circular	Shrouded - 4 Wall	Ferrite Filter	Board to Cable/Wire	Automotive	Solder	Gold	Latch Lock	10 A	Panel Mount Right Angle Through Hole	Male Pin	Brass	85 °C	-40 °C	All	31	Black	3
Cinch Connectivity Solutions Trompeter 5810630008	Tin	3.2 mm	0.126 in	Header	IP67 IP69K	Polymer Glass Filled	Circular	Shrouded - 4 Wall	Ferrite Filter	Board to Cable/Wire	Automotive	Solder	Gold	Latch Lock	10 A	Panel Mount Right Angle Through Hole	Male Pin	Brass	85 °C	-40 °C	All	32 positions	Black	3
Cinch Connectivity Solutions Trompeter 581 06 30 010	Tin	3.2 mm	0.126 in	Header	IP67 IP69K	Polymer Glass Filled	Circular	Shrouded - 4 Wall	Ferrite Filter	Board to Cable/Wire	Automotive	Solder	Gold	Latch Lock	10 A	Panel Mount Right Angle Through Hole	Male Pin	Brass	85 °C	-40 °C	All	32 positions	Black	3
Cinch Connectivity Solutions Trompeter 581 06 30 007	Tin	3.2 mm	0.126 in	Header	IP67 IP69K	Polymer Glass Filled	Circular	Shrouded - 4 Wall		Board to Cable/Wire	Automotive	Solder	Gold	Latch Lock	10 A	Panel Mount Right Angle Through Hole	Male Pin	Brass	85 °C	-40 °C	All	32 positions	Black	3
Cinch Connectivity Solutions Trompeter 581 06 30 009	Tin	3.2 mm	0.126 in	Header	IP67 IP69K	Polymer Glass Filled	Circular	Shrouded - 4 Wall		Board to Cable/Wire	Automotive	Solder	Gold	Latch Lock	10 A	Panel Mount Right Angle Through Hole	Male Pin	Brass	85 °C	-40 °C	All	32 positions	Black	3
Cinch Connectivity Solutions Trompeter 581 06 30 005	Tin	3.2 mm	0.126 in	Header	IP67 IP69K	Polymer Glass Filled	Circular	Shrouded - 4 Wall		Board to Cable/Wire	Automotive	Solder	Gold	Latch Lock	10 A	Panel Mount Right Angle Through Hole	Male Pin	Brass	85 °C	-40 °C	All	31	Black	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.36
		72	$ 39.54
		144	$ 37.36

Description

General part information

581 06 30 Series

Connector Header Panel Mount, Through Hole, Right Angle 32 (30 + 2 Coax) position
