5530741F

Active

DIALIGHT

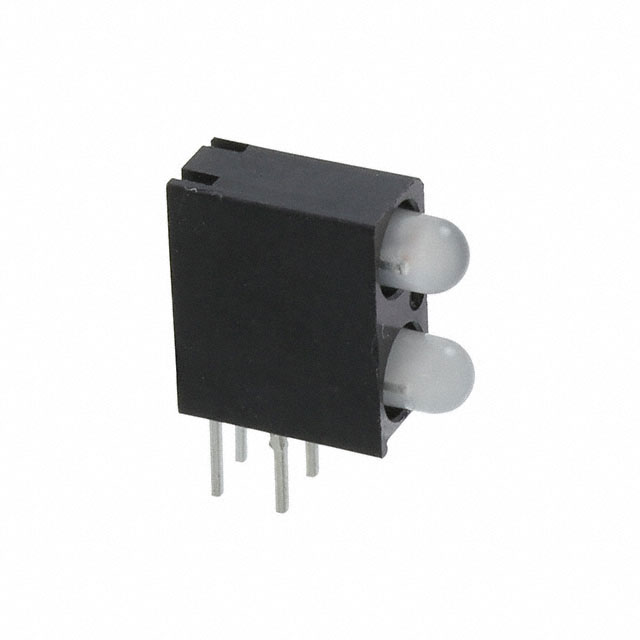

LED CBI 3MM 2X2 GRN/RED/YL RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530741F

Active

DIALIGHT

LED CBI 3MM 2X2 GRN/RED/YL RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530741F

Color	Yellow (x 1), Red (x 1), Green
Configuration [y]	2
Configuration [z]	2
Current	30 mA, 30 mA, 20 mA
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating [custom]	4.7 mcd
Millicandela Rating [custom]	6.3 mcd, 10 mcd
Millicandela Rating [custom]	4.3 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °, 80 °
Voltage Rating	2 V, 2.1 V, 2.1 V
Wavelength - Peak	585 nm, 565 nm, 635 nm

5530741 Series

Part	Configuration [y]	Configuration [z]	Color	Lens Style	Lens Size [diameter]	Current	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage Rating	Viewing Angle	Wavelength - Peak	Lens Type
DIALIGHT 5530741F	2	2	Green Red (x 1) Yellow (x 1)	Round with Domed Top	3 mm	20 mA 30 mA 30 mA	Through Hole Right Angle	4.7 mcd	6.3 mcd 10 mcd	4.3 mcd	2 V 2.1 V 2.1 V	60 ° 80 °	565 nm 585 nm 635 nm	Diffused
DIALIGHT 5530741828F				Round with Domed Top	3 mm		Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.41
		50	$ 2.27
		100	$ 1.75
		500	$ 1.58
		1000	$ 1.36
		2000	$ 1.28
		5000	$ 1.25

Description

General part information

5530741 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High x 2 Wide Green, Red (x 1), Green, Yellow (x 1) Diffused 2.1V Green, 2V Red, 2.1V Yellow 30mA Green, 30mA Red, 20mA Yellow Round with Domed Top 3.00mm Dia Through Hole, Right Angle
