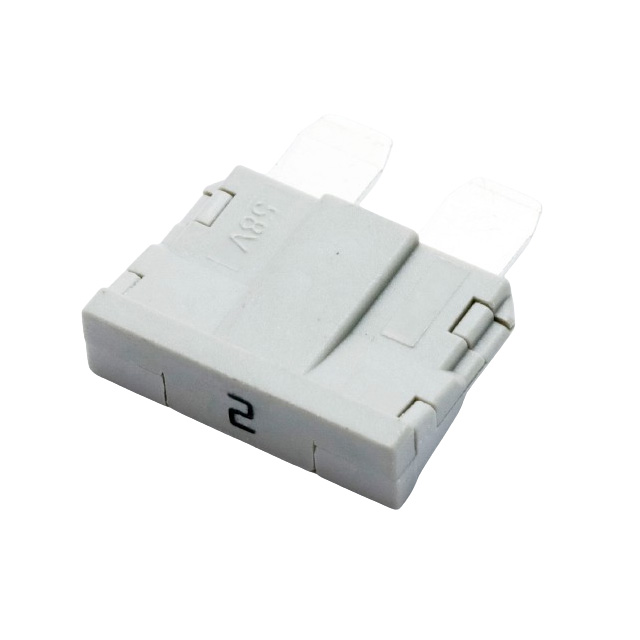

ANR58-UL-2A

Active

OptiFuse

FUSE AUTO 2A 250VAC 58VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR58-UL-2A

Active

OptiFuse

FUSE AUTO 2A 250VAC 58VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANR58-UL-2A

Approval Agency	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA
Color	Gray
Current Rating (Amps)	2 A
DC Cold Resistance	0.043 Ohms
Fuse Type	Automotive
Melting I²t	9.6
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.531 in
Size / Dimension [z]	13.5 mm
Voltage Rating - DC	58 VDC

ANR58 Series

Part	DC Cold Resistance	Color	Package / Case	Approval Agency	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Melting I²t	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Voltage Rating - DC	Melting I˛t
OptiFuse ANR58-UL-15A	0.004 Ohms	Blue	ATC ATO Blade	cURus UL 248	1 kA	15 A	Automotive	125 °C	-40 °C	Fast Blow	270	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC
OptiFuse ANR58-UL-12A		Light Pink	ATC ATO Blade	cURus UL 248	1 kA	12 A	Automotive	125 °C	-40 °C	Fast Blow		0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC
OptiFuse ANR58-2A	0.043 Ohms	Gray	ATC ATO Blade		1 kA	2 A	Automotive			Fast Blow		0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC	9.6
OptiFuse ANR58-UL-20A	3 mOhms	Yellow	ATC ATO Blade	cURus UL 248	1 kA	20 A	Automotive	125 °C	-40 °C	Fast Blow	360	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC
OptiFuse ANR58-UL-2A	0.043 Ohms	Gray	ATC ATO Blade	cURus UL 248	1 kA	2 A	Automotive	125 °C	-40 °C	Fast Blow	9.6	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC
OptiFuse ANR58-UL-40A	1.25 Ohms		ATC ATO Blade	cURus UL 248	1 kA	40 A	Automotive	125 °C	-40 °C	Fast Blow		0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC	3200
OptiFuse ANR58-UL-25A	1.9 Ohms	Clear	ATC ATO Blade	cURus UL 248	1 kA	25 A	Automotive	125 °C	-40 °C	Fast Blow	813	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC
OptiFuse ANR58-UL-3A	0.03 Ohms	Violet	ATC ATO Blade	cURus UL 248	1 kA	3 A	Automotive	125 °C	-40 °C	Fast Blow		0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC
OptiFuse ANR58-UL-500MA	0.29 Ohms	Dark Blue	ATC ATO Blade	cURus UL 248	1 kA	0.5 A	Automotive	125 °C	-40 °C	Fast Blow	0.3	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	Requires Holder	58 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.68
		10	$ 2.61
		25	$ 2.53
		50	$ 2.14
		100	$ 1.75
		250	$ 1.58
		500	$ 1.33
		1000	$ 1.16

Description

General part information

ANR58 Series

2 A AC 58 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
