09200162615

Active

HARTING Technology Group

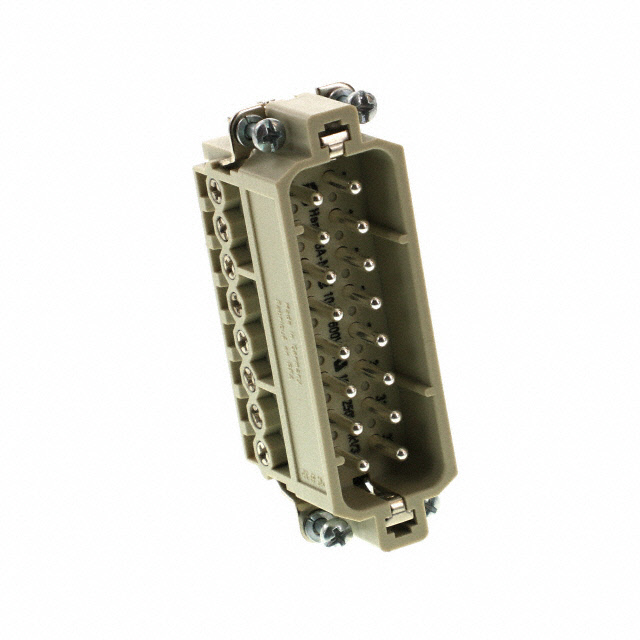

HAN 32A - 16A MALE SCREW TERMINAL INSERT (MARKED 17-32) (WITH WIRE PROTECTION)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 32A - 16A MALE SCREW TERMINAL INSERT (MARKED 17-32) (WITH WIRE PROTECTION)

Technical Specifications

Parameters and characteristics for this part

Specification	09200162615

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 A
Termination Style	Screw
Voltage Rating	250 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Housing Material	Current Rating (Amps)	Number of Positions	Contact Material	Contact Finish	Material Flammability Rating	Color	Gender	Voltage Rating	Size
HARTING Technology Group 09200162612	125 °C	-40 °C	Screw	Polycarbonate (PC)	16 A	16+Ground	Copper Alloy	Silver	UL94 V-0	Gray	Male	600 V
HARTING Technology Group 09200162813	125 °C	-40 °C	Screw	Polycarbonate (PC)	16 A	16+Ground	Copper Alloy	Silver	UL94 V-0	Gray	Female	600 V	32 A
HARTING Technology Group 09200162812	125 °C	-40 °C	Screw	Polycarbonate (PC)	16 A	16+Ground	Copper Alloy	Silver	UL94 V-0	Gray	Female	600 V
HARTING Technology Group 09200162816	125 °C	-40 °C	Screw	Polycarbonate (PC)	16 A		Copper Alloy	Silver	UL94 V-0	Gray	Female	250 VDC	32 A
HARTING Technology Group 09200162615	125 °C	-40 °C	Screw	Polycarbonate (PC)	16 A		Copper Alloy	Silver	UL94 V-0	Gray	Male	250 VDC	32 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 32+Ground Position Screw
