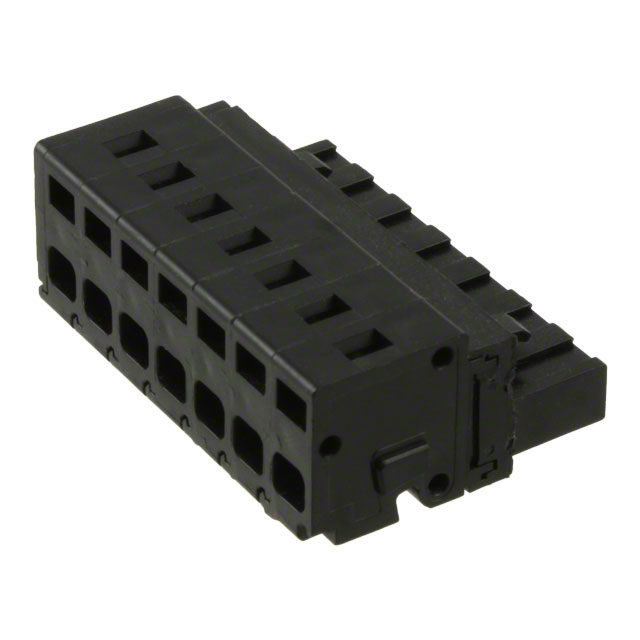

SCFF07210

Active

AMPHENOL PCD

TERM BLOCK PLUG 7POS STR 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 7POS STR 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SCFF07210

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	0.55 in
Insulation Height	13.97 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	7
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	7
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	6.35 mm

Part	Number of Positions	Insulation Height	Insulation Height	Housing Material	Material Flammability Rating	Contact Mating Finish	Operating Temperature	Positions Per Level	Voltage - UL	Wire Strip Length	Mounting Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Pitch [x]	Pitch [x]	Termination Style	Type	Color	Contact Material
AMPHENOL PCD SCFF07210	7	0.55 in	13.97 mm	Polyphenylene Oxide (PPO)	UL94 V-0	Tin	105 C	7	300 V	6.35 mm	Free Hanging (In-Line)	28 AWG	12 AWG	1	0.2 in	5.08 mm	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	Black	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.60

General part information

7 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
