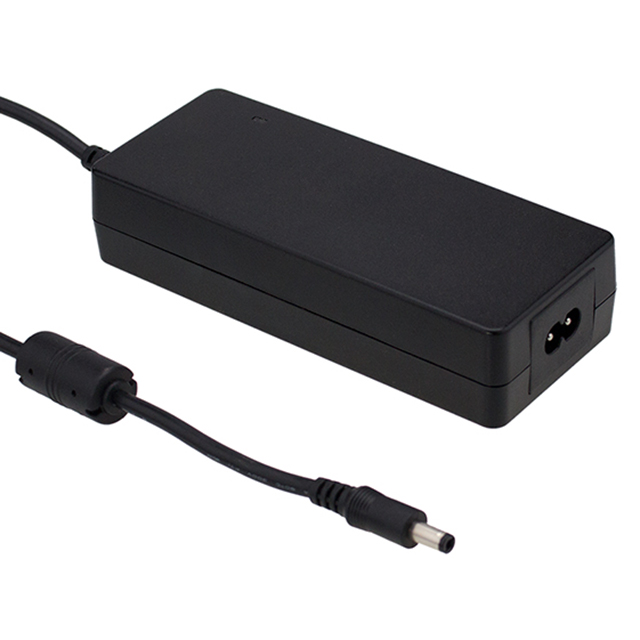

GSM90B12-P1M
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 12V 80W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSM90B12-P1M |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cRUus, TUV |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 6.67 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 80 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.71 in |
| Size / Dimension [x] | 145 mm |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 33.60 | |
| 5 | $ 32.00 | |||
| 10 | $ 30.60 | |||
| 25 | $ 29.70 | |||
Description
General part information
GSM90B12 Series
12V 80 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
