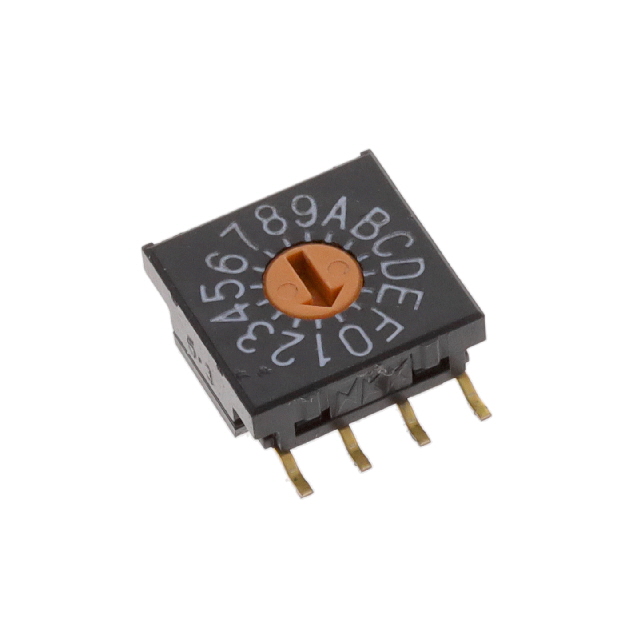

ROTARY CODED SWITCH, ULTRA THIN DIP, FR02 SERIES, SURFACE MOUNT, 16 POSITION, 5 VDC, HEXADECIMAL

Search across all available documentation for this part.

Active

NKK Switches

ROTARY CODED SWITCH, ULTRA THIN DIP, FR02 SERIES, SURFACE MOUNT, 16 POSITION, 5 VDC, HEXADECIMAL

Technical Specifications

Parameters and characteristics for this part

Specification	FR02FR16P

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.154 in
Height Above Board	3.9 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Surface Mount
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	False

Part	Length	Length	Circuit	Current Rating (Amps)	Washable	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Actuator Type	Electrical Life	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Voltage Rating	Contact Finish	Mechanical Life	Termination Style	Number of Positions	Height Above Board	Height Above Board
NKK Switches FR02FR16P	10 mm	0.394 in	Hexadecimal	100 mA		Polyamide (PA) Nylon Glass Filled	-25 °C	85 °C	Copper Alloy	Rotary for Tool	10000 Cycles	Flush Recessed	0.1 in	Full	2.54 mm	Surface Mount	5 V	Gold	10000 Steps	Gull Wing	16	0.154 in	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC
