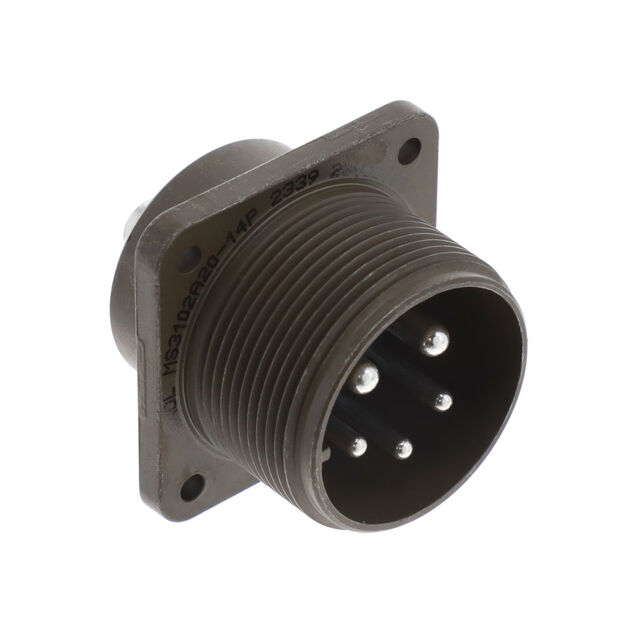

MS3102A20-14P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102A20-14P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A20-14P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A, 23 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	20
Shielding	Unshielded

MS3102A20 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Insert Material	Shell Material	Shell Size - Insert	Primary Material	Qualification	Shielding	Color	Orientation	Contact Finish - Mating	Mounting Feature	Shell Finish	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Grade	Ingress Protection	Number of Positions
Amphenol Industrial Operations MS3102A20-3SW	-55 °C	125 °C	Marine Military	Copper Alloy	1.125 in	28.58 mm	Receptacle Female Sockets	Neoprene	Aluminum Alloy	20-3	Metal	MIL-5015	Unshielded	Olive Drab	W	Silver	Flange	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3102A20-27P	-55 °C	125 °C	Marine Military	Copper Alloy			Male Pins Receptacle	Neoprene	Aluminum Alloy		Metal	MIL-DTL-5015	Unshielded	Olive Drab	N	Silver	Flange	Olive Drab Chromate over Cadmium	13 A	27	20	Military	Environment Resistant	14
Amphenol Industrial Operations MS3102A20-3S
Amphenol Industrial Operations MS3102A20-11S-RES
Amphenol Industrial Operations MS3102A20-19S-RES
Amphenol Industrial Operations MS3102A20-29S	-55 °C	125 °C	Marine Military	Copper Alloy	1.125 in	28.58 mm	Receptacle Female Sockets	Neoprene	Aluminum Alloy		Metal	MIL-5015	Unshielded	Olive Drab	N	Silver	Flange	Olive Drab Chromate over Cadmium		29	20
Amphenol Industrial Operations MS3102A20-23P-RES
Amphenol Industrial Operations MS3102A20-14P	-55 °C	125 °C	Marine Military	Copper Alloy			Male Pins Receptacle	Neoprene	Aluminum Alloy		Metal	MIL-DTL-5015	Unshielded	Olive Drab	N	Silver	Flange	Olive Drab Chromate over Cadmium	23 A 46 A	14	20	Military	Environment Resistant
Amphenol Industrial Operations MS3102A20-32S
Amphenol Industrial Operations MS3102A20-14S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 25.95
		10	$ 22.73
		25	$ 21.74
		50	$ 21.04
		100	$ 20.34
		250	$ 19.22
		500	$ 18.66

Description

General part information

MS3102A20 Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup
