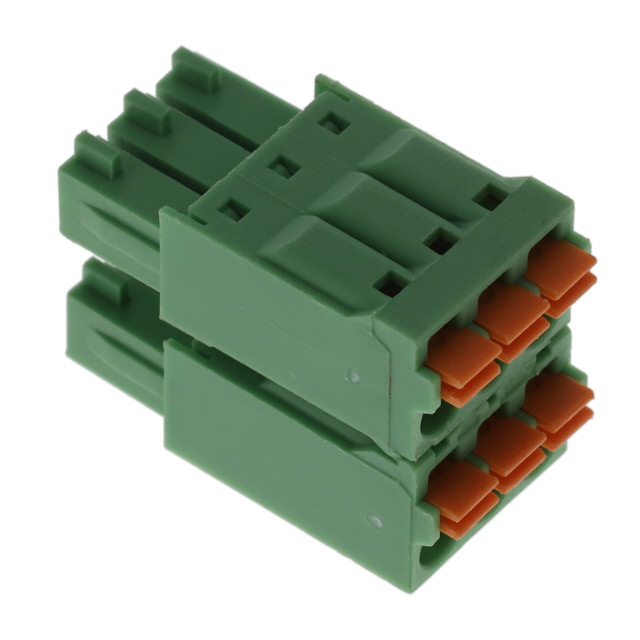

KD061050A000G

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS STR 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

KD061050A000G

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS STR 3.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KD061050A000G

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	5.5 A
Housing Material	Thermoplastic
Insulation Height	16.1 mm
Insulation Height	0.634 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	2
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	3
Termination Style	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets
Voltage - UL	160 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length [Max]	10 mm
Wire Strip Length [Min]	9 mm

KD06 Series

Part	Contact Material	Type	Material Flammability Rating	Insulation Height	Insulation Height	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Material	Contact Mating Finish	Features	Wire Strip Length [Min]	Wire Strip Length [Max]	Pitch [x]	Pitch [x]	Color	Positions Per Level	Mounting Type	Current - UL	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Termination Style	Number of Positions
Amphenol Anytek KD0650520000G	Phosphor Bronze	Plug Female Sockets	UL94 V-0	0.429 in	10.9 mm	300 V	14 AWG	24 AWG	Thermoplastic	Tin	Latch Lock	11 mm	12 mm	0.2 in	5.08 mm	Green	6	Free Hanging (In-Line)	12 A	-40 °C	115 °C	1	Push-In Spring Screwless - Leg Spring	6
Amphenol Anytek KD061050A000G	Phosphor Bronze	Plug Female Sockets	UL94 V-0	0.634 in	16.1 mm	160 V	16 AWG	24 AWG	Thermoplastic	Tin		9 mm	10 mm	0.138 in	3.5 mm	Green	3	Free Hanging (In-Line)	5.5 A	-40 °C	115 °C	2	Push-In Spring Screwless - Leg Spring	6
Amphenol Anytek KD0630500000G	Phosphor Bronze	Plug Female Sockets	UL94 V-0			300 V	16 AWG	24 AWG	Thermoplastic	Tin		9 mm	10 mm	0.15 in	3.81 mm	Green	6	Free Hanging (In-Line)	5.5 A	-40 °C	115 °C	1	Push-In Spring Screwless - Leg Spring	6
Amphenol Anytek KD061051A000G	Phosphor Bronze	Plug Female Sockets	UL94 V-0	0.634 in	16.1 mm	160 V	16 AWG	24 AWG	Thermoplastic	Tin		9 mm	10 mm	0.138 in	3.5 mm	Green	3	Free Hanging (In-Line)	5.5 A	-40 °C	115 °C	2	Push-In Spring Screwless - Leg Spring	6
Amphenol Anytek KD0610520000G	Phosphor Bronze	Plug Female Sockets	UL94 V-0			160 V	16 AWG	24 AWG	Thermoplastic	Tin	Latch Lock	9 mm	10 mm	0.138 in	3.5 mm	Green	6	Free Hanging (In-Line)	5.5 A	-40 °C	115 °C	1	Push-In Spring Screwless - Leg Spring	6
Amphenol Anytek KD061052A000G	Phosphor Bronze	Plug Female Sockets	UL94 V-0	0.634 in	16.1 mm	160 V	16 AWG	24 AWG	Thermoplastic	Tin	Latch Lock	9 mm	10 mm	0.138 in	3.5 mm	Green	3	Free Hanging (In-Line)	5.5 A	-40 °C	115 °C	2	Push-In Spring Screwless - Leg Spring	6
Amphenol Anytek KD0610510000G	Phosphor Bronze	Plug Female Sockets	UL94 V-0			160 V	16 AWG	24 AWG	Thermoplastic	Tin	Mating Flange	9 mm	10 mm	0.138 in	3.5 mm	Green	6	Free Hanging (In-Line)	5.5 A	-40 °C	115 °C	1	Push-In Spring Screwless - Leg Spring	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.64
		10	$ 1.65
		25	$ 1.45
		50	$ 1.34
		100	$ 1.26
		250	$ 1.18
		500	$ 1.14
		1980	$ 1.09
		5940	$ 1.06

Description

General part information

KD06 Series

6 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
