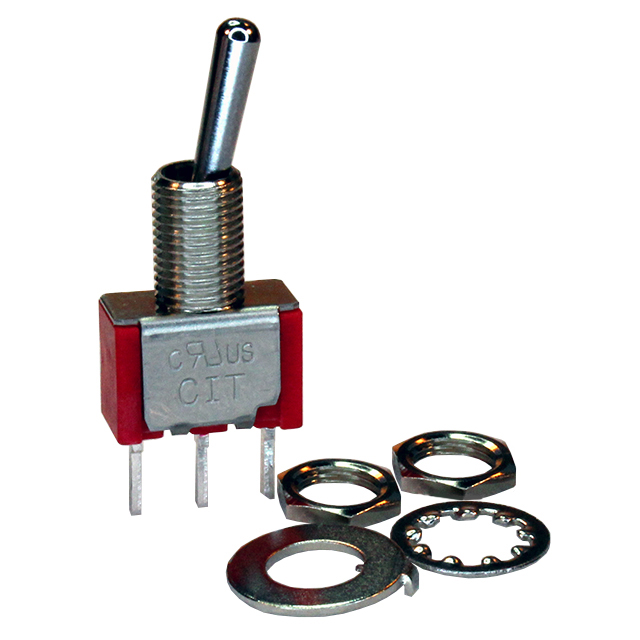

ANT13SECQE
ActiveCIT Relay and Switch
SWITCH TOGGLE SPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT13SECQE
ActiveCIT Relay and Switch
SWITCH TOGGLE SPDT 5A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT13SECQE |
|---|---|
| Actuator Length [x] | 10.67 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Electrical Life | 50000 Cycles |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-Off-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.32 | |
| 10 | $ 2.08 | |||
| 25 | $ 1.97 | |||
| 50 | $ 1.88 | |||
| 200 | $ 1.78 | |||
| 400 | $ 1.71 | |||
| 600 | $ 1.59 | |||
| 1000 | $ 1.51 | |||
Description
General part information
ANT13 Series
Toggle Switch SPDT Through Hole
