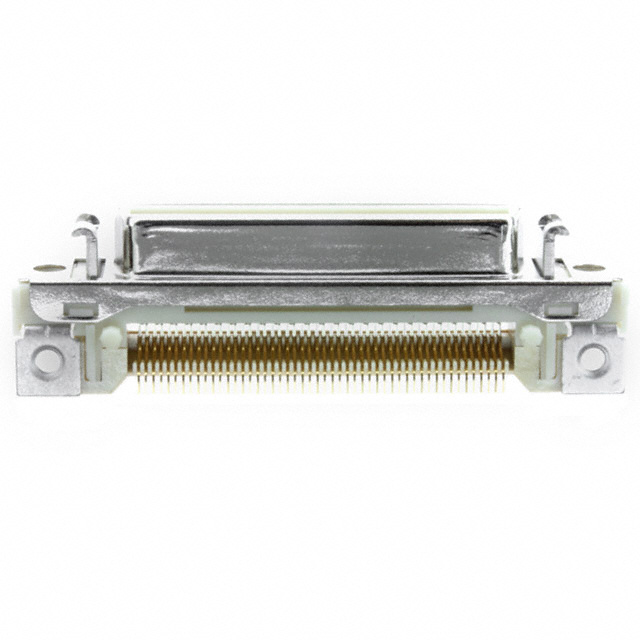

10250-1210PE

Active

3M (TC)

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 50 CONTACTS, SOLDER

Search across all available documentation for this part.

Active

3M (TC)

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 50 CONTACTS, SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Flange Feature	Flange Feature	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Contact Finish	Connector Style	Mounting Type	Termination
3M (TC) 10250-0210EC	Housing/Shell	2.6 M	Shielded	2	0.76 Ám	30 Áin	Receptacle	50	Gold	Outer Shroud Contacts	Free Hanging (In-Line)	IDC
3M (TC) 10250-55G3PC	Housing/Shell	2.6 M	Board Lock Shielded	2	0.76 Ám	30 Áin	Receptacle	50	Gold	Outer Shroud Contacts	Panel Mount Right Angle Through Hole	Solder
3M (TC) 10250-55H3VC	Housing/Shell (4-40) Latchblocks		Board Lock Shielded	2	0.76 Ám	30 Áin	Receptacle	50	Gold	Outer Shroud Contacts	Panel Mount Right Angle Through Hole	Solder
3M (TC) 10250-52B2PL
3M (TC) 10250-52A2PL
3M (TC) 10250-R21TS	Housing/Shell	2.6 M	Shielded	2	0.76 Ám	30 Áin	Receptacle	50	Gold	Outer Shroud Contacts	Panel Mount Through Hole	Press-Fit
3M (TC) 10250-52B2VE	Housing/Shell	2.6 M	Board Lock Shielded	2	0.51 µm	20 µin	Receptacle	50	Gold	Outer Shroud Contacts	Through Hole Right Angle	Solder
3M (TC) 10250-55F3PC	Housing/Shell	2.6 M	Board Lock Shielded	2	0.76 Ám	30 Áin	Receptacle	50	Gold	Outer Shroud Contacts	Panel Mount Right Angle Through Hole	Solder
3M (TC) 10250-6212PL	Housing/Shell (M2.5) Latchblocks		Shielded	2	0.2 µm	7.87 µin	Receptacle	50	Gold	Outer Shroud Contacts	Panel Mount Through Hole	Solder
3M (TC) 10250-1210PE	Housing/Shell	2.6 M	Board Guide Shielded	2	0.51 µm	20 µin	Receptacle	50	Gold	Outer Shroud Contacts	Surface Mount Right Angle	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Receptacle Connector Surface Mount, Right Angle Solder

Technical documentation and resources
