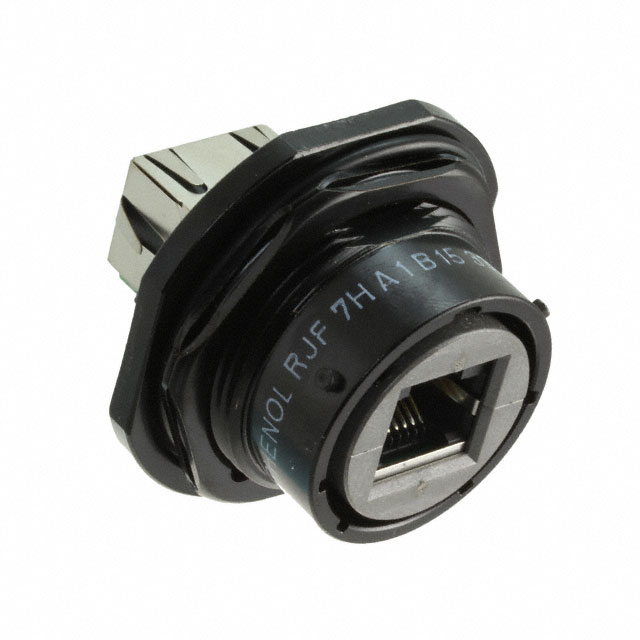

RJF7HA1B
ActiveAmphenol Socapex
RJ FIELD HEX NUT RECEPT CORDSET
Deep-Dive with AI
Search across all available documentation for this part.
RJF7HA1B
ActiveAmphenol Socapex
RJ FIELD HEX NUT RECEPT CORDSET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJF7HA1B |
|---|---|
| Connector Type | Jack |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Tab Direction | User Selectable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 122.87 | |
| 10 | $ 95.75 | |||
| 25 | $ 87.18 | |||
| 50 | $ 81.41 | |||
| 100 | $ 76.18 | |||
Description
General part information
RJF7 Series
Jack Modular Connector 8p8c Straight Cat5e
