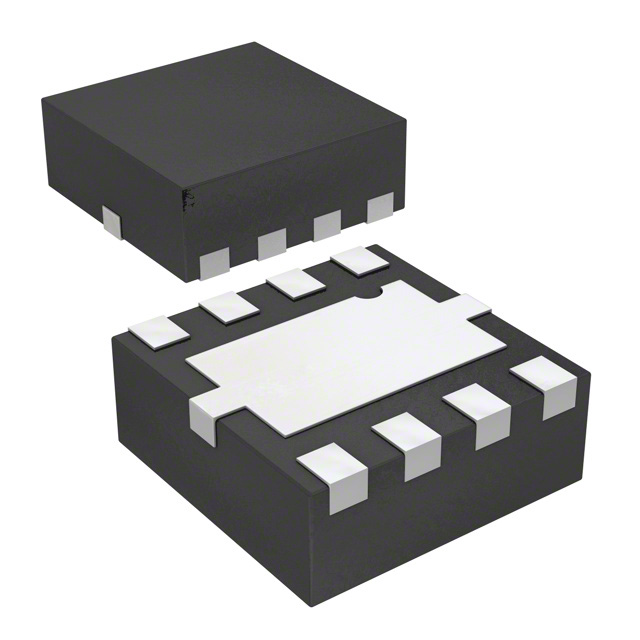

GD25D80CKIGR

Active

GigaDevice Semiconductor (HK) Limited

IC FLASH 8MBIT SPI/DUAL 8USON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Selection Guide 2023

GD25D80CKIGR

Active

GigaDevice Semiconductor (HK) Limited

IC FLASH 8MBIT SPI/DUAL 8USON

Deep-Dive with AI

DocumentsDatasheet Product Selection Guide 2023

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GD25D80CKIGR

Clock Frequency	100 MHz
Memory Format	FLASH
Memory Interface	SPI - Dual I/O
Memory Organization [custom]	1 M
Memory Organization [custom]	8 bits
Memory Size	1024 KB
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-XFDFN Exposed Pad
Supplier Device Package	8-USON (1.5x1.5)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page [custom]	4 ms
Write Cycle Time - Word, Page [custom]	50 µs

GD25D80 Series

Part	Supplier Device Package	Memory Size	Clock Frequency	Package / Case	Package / Case [y]	Package / Case [x]	Access Time	Memory Type	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Interface	Technology	Memory Organization [custom]	Memory Organization [custom]	Mounting Type
GigaDevice Semiconductor (HK) Limited GD25D80CTIGR	8-SOP	1024 KB	100 MHz	8-SOIC	3.9 mm	0.154 in	6 ns	Non-Volatile	FLASH	85 °C	-40 °C	4 ms	50 µs	2.7 V	3.6 V	SPI - Dual I/O	FLASH - NOR (SLC)	1 M	8 bits	Surface Mount
GigaDevice Semiconductor (HK) Limited GD25D80EEIGR	8-USON (3x2)	1024 KB	104 MHz	8-XFDFN Exposed Pad			6 ns	Non-Volatile	FLASH	85 °C	-40 °C	4 ms	50 µs	2.7 V	3.6 V	SPI - Dual I/O	FLASH - NOR (SLC)	1 M	8 bits	Surface Mount
GigaDevice Semiconductor (HK) Limited GD25D80CKIGR	8-USON (1.5x1.5)	1024 KB	100 MHz	8-XFDFN Exposed Pad				Non-Volatile	FLASH	85 °C	-40 °C	4 ms	50 µs	2.7 V	3.6 V	SPI - Dual I/O	FLASH - NOR	1 M	8 bits	Surface Mount
GigaDevice Semiconductor (HK) Limited GD25D80CEIGR	8-USON (3x2)	1024 KB	100 MHz	8-XFDFN Exposed Pad			6 ns	Non-Volatile	FLASH	85 °C	-40 °C	4 ms	50 µs	2.7 V	3.6 V	SPI - Dual I/O	FLASH - NOR (SLC)	1 M	8 bits	Surface Mount
GigaDevice Semiconductor (HK) Limited GD25D80CSIGR	8-SOP	1024 KB	100 MHz	8-SOIC	5.3 mm	0.209 "	6 ns	Non-Volatile	FLASH	85 °C	-40 °C	4 ms	50 µs	2.7 V	3.6 V	SPI - Dual I/O	FLASH - NOR (SLC)	1 M	8 bits	Surface Mount
GigaDevice Semiconductor (HK) Limited GD25D80ESIGR		1024 KB	104 MHz						FLASH							SPI - Dual I/O	FLASH - NOR (SLC)	1 M	8 bits
GigaDevice Semiconductor (HK) Limited GD25D80EKIGR	8-USON (1.5x1.5)	1024 KB	104 MHz	8-XFDFN Exposed Pad			6 ns	Non-Volatile	FLASH	85 °C	-40 °C	4 ms	50 µs	2.7 V	3.6 V	SPI - Dual I/O	FLASH - NOR (SLC)	1 M	8 bits	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.38
		10	$ 0.38
		25	$ 0.35
		50	$ 0.35
		100	$ 0.31
		250	$ 0.30
		500	$ 0.30
	Digi-Reel®	1	$ 0.38
		10	$ 0.38
		25	$ 0.35
		50	$ 0.35
		100	$ 0.31
		250	$ 0.30
		500	$ 0.30
	Tape & Reel (TR)	3000	$ 0.40
		6000	$ 0.38
		9000	$ 0.37
		15000	$ 0.36
		21000	$ 0.36

Description

General part information

GD25D80 Series

FLASH - NOR Memory IC 8Mbit SPI - Dual I/O 100 MHz 8-USON (1.5x1.5)

Documents

Technical documentation and resources

Datasheet

Product Selection Guide 2023

Datasheet
