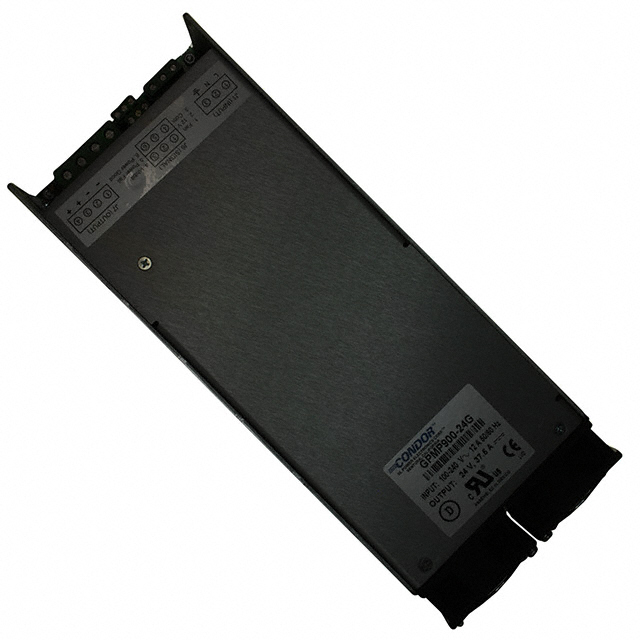

GPMP900-24G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 900W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 900W

Technical Specifications

Parameters and characteristics for this part

Specification	GPMP900-24G

Applications	Medical
Current - Output 1	37.5 A
Efficiency	84 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	900 W
Size / Dimension [x]	314.5 mm
Size / Dimension [x]	12.38 "
Size / Dimension [y]	123.2 mm
Size / Dimension [y]	4.85 "
Size / Dimension [z]	2.48 "
Size / Dimension [z]	63 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Applications	Voltage - Output 1	Mounting Type	Features	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs
SL POWER / Advanced Energy GPMP900-24G	Medical	24 V	Chassis Mount	Adjustable Output PFC Universal Input	4000 V	90 VAC	264 VAC	900 W	84 %	-20 C	70 °C	Enclosed	37.5 A	2.48 "	314.5 mm	12.38 "	123.2 mm	63 mm	4.85 "	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
