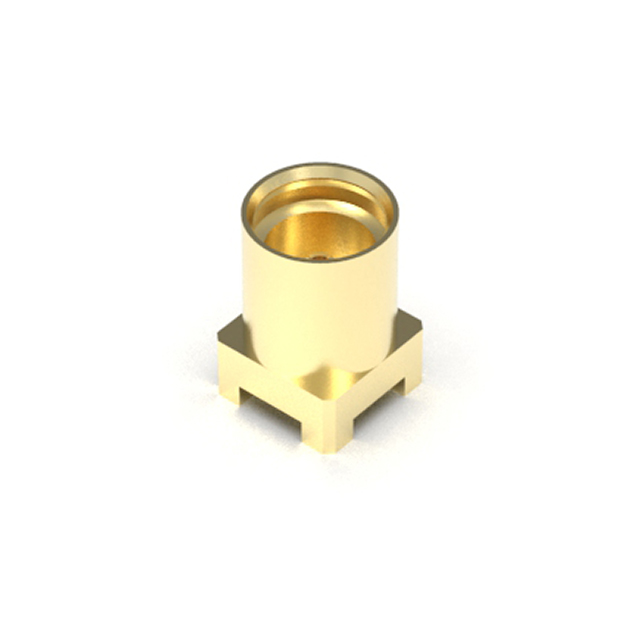

RFPC-MMCX04-F-R

Active

GCT

MMCX STRAIGHT JACK PCB MOUNT - S

Search across all available documentation for this part.

Active

GCT

MMCX STRAIGHT JACK PCB MOUNT - S

Technical Specifications

Parameters and characteristics for this part

Specification	RFPC-MMCX04-F-R

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Shield Termination	Dielectric Material	Center Contact Plating	Contact Termination	Fastening Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Type	Connector Style	Mounting Type	Center Contact Material	Mating Cycles	Body Material	Frequency - Max [Max]	Body Finish
GCT RFPC-MMCX04-F-R	Solder	Polytetrafluoroethylene (PTFE)	Gold	Solder	Snap-On	1	125 °C	-40 °C	Gold	Female Socket Jack	MMCX	Surface Mount	Beryllium Copper	500	Brass	6000 MHz	Gold
GCT RFPC-MMCX03-F	Solder	Polytetrafluoroethylene (PTFE)	Gold	Solder	Snap-On	1	125 °C	-40 °C	Gold	Female Socket Jack	MMCX	Through Hole	Beryllium Copper	500	Brass	6000 MHz	Gold
GCT RFPC-MMCX02-F	Solder	Polytetrafluoroethylene (PTFE)	Gold	Solder	Snap-On	1	125 °C	-40 °C	Gold	Female Socket Jack	MMCX	Through Hole Right Angle	Phosphor Bronze	500	Brass	6000 MHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.70
	Digi-Reel®	1	$ 2.70
	Tape & Reel (TR)	1500	$ 1.51

General part information

MMCX Connector Jack, Female Socket Surface Mount Solder
