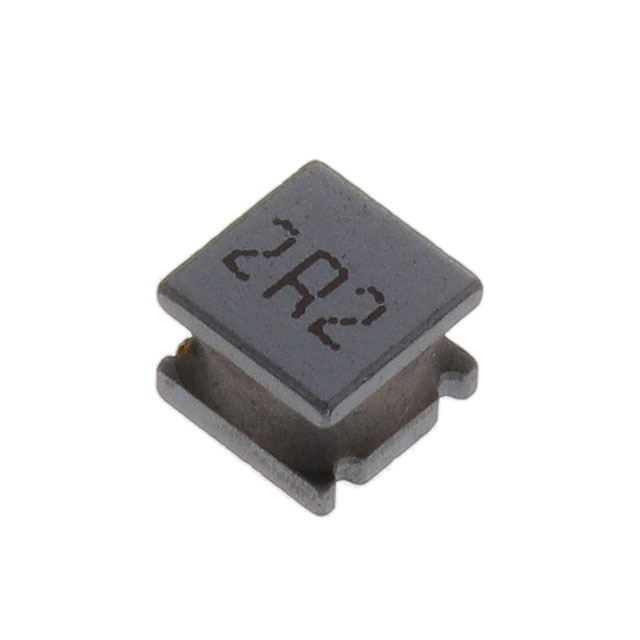

SDEI054T-2R2MS
ActiveDelta Electronics/Cyntec
FIXED IND 2.2UH 5.4A 17.5MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
SDEI054T-2R2MS
ActiveDelta Electronics/Cyntec
FIXED IND 2.2UH 5.4A 17.5MOHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDEI054T-2R2MS |
|---|---|
| Current - Saturation (Isat) | 6.7 A |
| Current Rating (Amps) | 5.4 A |
| DC Resistance (DCR) [Max] | 17.5 mOhm |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 4.9 mm |
| Size / Dimension [x] | 0.193 in |
| Size / Dimension [y] | 0.193 in |
| Size / Dimension [y] | 4.9 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.26 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| Tape & Reel (TR) | 1200 | $ 0.14 | ||
| 2400 | $ 0.13 | |||
| 6000 | $ 0.12 | |||
| 12000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 60000 | $ 0.11 | |||
Description
General part information
SDEI054T Series
2.2 µH Shielded Inductor 5.4 A 17.5mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
