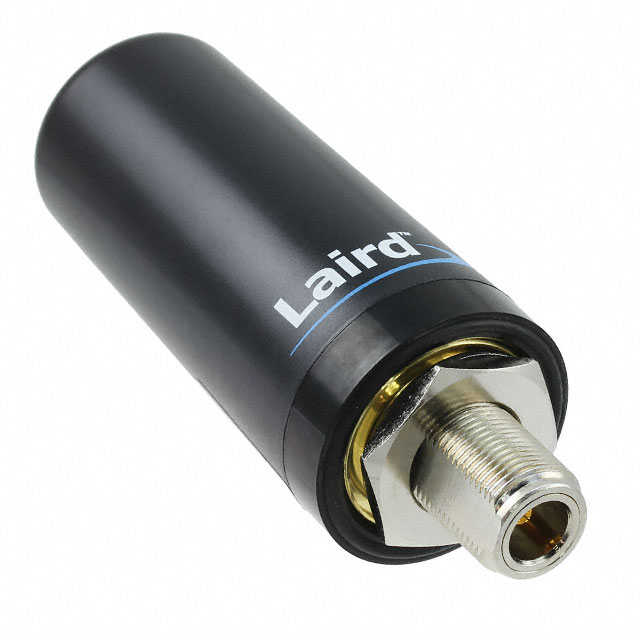

TRA6927M3PB-001

Active

TE Connectivity Raychem Cable Protection

OMNI,DB,PH,698/1710 MHZ BK,3 DBI,100W,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet OMNI, Ph, 698/1710 MHz, 3 dBi, 100W PMNT +3

TRA6927M3PB-001

Active

TE Connectivity Raychem Cable Protection

OMNI,DB,PH,698/1710 MHZ BK,3 DBI,100W,

Deep-Dive with AI

DocumentsDatasheet OMNI, Ph, 698/1710 MHz, 3 dBi, 100W PMNT +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRA6927M3PB-001

Antenna Type	Whip, Straight
Frequency (Center/Band)	2.2 GHz, 829 MHz
Frequency Group	Wide Band
Frequency Range [Max]	960 MHz, 2.7 GHz
Frequency Range [Min]	698 MHz, 1.71 GHz
Gain	5.5 dBi
Height (Max)	83.82 mm
Height (Max) [Max]	3.3 in
Mounting Type	Base Mount
Number of Bands	1
Power - Max [Max]	100 W
Termination	N Type Female
VSWR	2.5

TRA6927 Series

Part	Power - Max [Max]	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Termination	Height (Max) [Max]	Height (Max)	Number of Bands	VSWR	Frequency Group	Gain	Antenna Type	Frequency (Center/Band)	RF Family/Standard	VSWR [Max]	VSWR [Min]	Applications
TE Connectivity Raychem Cable Protection TRA6927M3NB-001	100 W	Base Mount	2.7 GHz 960 MHz	1.71 GHz 698 MHz	NMO	3.3 in	83.82 mm	1	2.5	Wide Band	5.5 dBi	Dome	2.2 GHz 829 MHz
TE Connectivity Raychem Cable Protection TRA6927M3PBN-001	100 W		1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	N Type Female	3.3 in	83.82 mm	2		Wide Band	0 dBi 1.7 dBi 2.9 dBi	Dome	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	Cellular WiFi	2.5	2	GSM LTE WiMax™
TE Connectivity Raychem Cable Protection TRA6927M3PWN-001	100 W		1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	N Type Female	3.3 in	83.82 mm	2		Wide Band	0 dBi 1.7 dBi 2.9 dBi	Dome	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	Cellular WiFi	2.5	2	GSM LTE WiMax™
TE Connectivity Raychem Cable Protection TRA6927M3NWN-001	100 W	Base Mount	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	NMO	3.3 in	83.82 mm	2		Wide Band	0 dBi 1.7 dBi 2.9 dBi	Dome	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	Cellular WiFi	2.5	2	GSM LTE WiMax™
TE Connectivity Raychem Cable Protection TRA6927M3NBN-001	100 W	Base Mount	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	NMO	3.3 in	83.82 mm	2		Wide Band	0 dBi 1.7 dBi 2.9 dBi	Dome	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	Cellular WiFi	2.5	2	GSM LTE WiMax™
TE Connectivity Raychem Cable Protection TRA6927M3PB-001	100 W	Base Mount	2.7 GHz 960 MHz	1.71 GHz 698 MHz	N Type Female	3.3 in	83.82 mm	1	2.5	Wide Band	5.5 dBi	Whip Straight	2.2 GHz 829 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.06
		10	$ 45.21
		25	$ 41.92
		100	$ 38.97

Description

General part information

TRA6927 Series

Dome/Puck Antenna, Multi Band, Cellular / ISM, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain

Documents

Technical documentation and resources

Datasheet

TRA6927M3PB-001

Deep-Dive with AI

TRA6927M3PB-001

Deep-Dive with AI

Technical Specifications

TRA6927 Series

Pricing

Description

TRA6927 Series

Documents

Datasheet

OMNI, Ph, 698/1710 MHz, 3 dBi, 100W PMNT

ENG_CD_TRA6927M3PB-001-MO_B.pdf

4G/3G Multiband Phantom Antenna 698-960 MHz/1700-2700 MHz

Datasheet

TRA6927 Series
