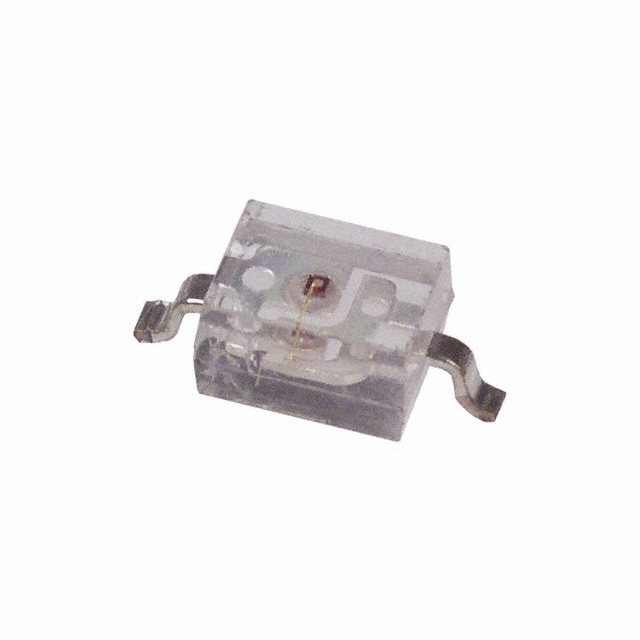

CMD28-21VGC/TR8
ActiveVisual Communications Company - VCC
LED GREEN CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMD28-21VGC/TR8
ActiveVisual Communications Company - VCC
LED GREEN CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD28-21VGC/TR8 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.6 mm |
| Lens Size [x] | 2.5 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 5.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 2000 | $ 0.28 | ||
| 6000 | $ 0.27 | |||
| 10000 | $ 0.27 | |||
Description
General part information
CMD28-21 Series
Green LED Indication - Discrete 2.1V 2-SMD, Gull Wing
