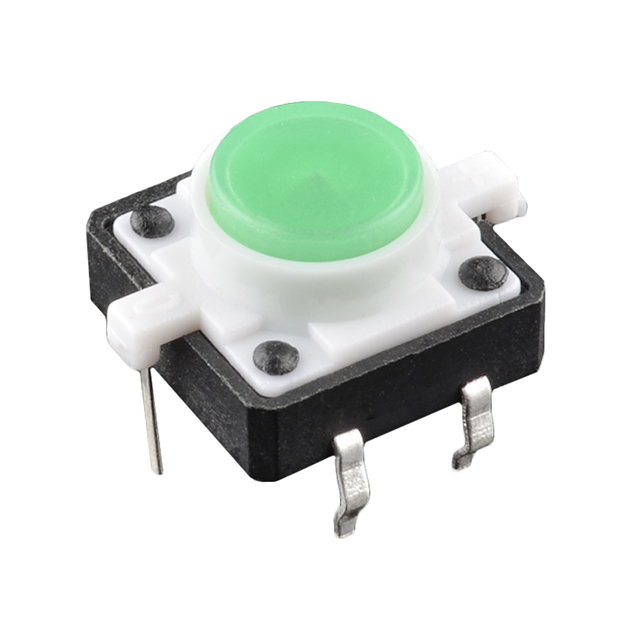

COM-10440

Active

SparkFun Electronics

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

COM-10440

Active

SparkFun Electronics

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	COM-10440

Actuator Height off PCB, Vertical	6.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Illuminated
Illumination Type, Color	LED, Green
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	150 gf
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

- Series

Part	Housing Color	Mounting Type	Impedance	Shield Termination	Connector Type	Frequency - Max [Max]	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Center Contact Plating	Center Contact Material	Body Finish	Contact Termination	Voltage Rating	Number of Ports	Fastening Type	Switch Function	Circuit	Termination Style	Actuator Type	Illumination	Actuator Orientation	2nd Connector Type	1st Connector Mounting Type	1st Connector Type	Cable Type	Length	Length	2nd Connector Mounting Type	Shielding	Color	Outline [x]	Outline [y]	Contact Rating @ Voltage	Operating Force	Switch Travel	Mechanical Life	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Illumination Type, Color	Actuator Height off PCB, Vertical
SparkFun Electronics WRL-09144	Gold	Surface Mount	50 Ohms	Solder	Male Pin Receptacle	6000 MHz	Mini UHF	85 °C	-40 °C	Copper Alloy	Gold	Copper Alloy	Gold	Solder	60 VDC	1	Snap-On
SparkFun Electronics COM-10791		Through Hole Right Angle																Off-Mom	SPST-NO	PC Pin	Rectangular Button	Non-Illuminated	Side Actuated
SparkFun Electronics CAB-15796																								Micro HDMI-D Male	Free Hanging (In-Line)	HDMI-A Male	Round	3.3 ft	1 m	Free Hanging (In-Line)	Shielded	Red
SparkFun Electronics DD-15326		Through Hole																Off-Mom	SPST-NO	PC Pin	Round Button	Non-Illuminated	Top Actuated										11.7 mm	11.5 mm
SparkFun Electronics COM-10440		Through Hole																Off-Mom	SPST-NO	PC Pin	Round Button	Illuminated	Top Actuated										12 mm	12 mm	0.05 A 12 VDC	150 gf	0.25 mm	100000 Cycles	-10 °C	158 °F	Green LED	6.5 mm
SparkFun Electronics COM-00097		Through Hole																Off-Mom	SPST-NO	PC Pin	Standard	Non-Illuminated	Top Actuated
SparkFun Electronics COM-12993		Surface Mount																Off-Mom	SPST-NO	Gull Wing	Standard	Non-Illuminated	Top Actuated										12 mm	12 mm	0.05 A 12 VDC		0.35 mm	200000 Cycles				8.5 mm
SparkFun Electronics COM-10439		Through Hole																Off-Mom	SPST-NO	PC Pin	Round Button	Illuminated	Top Actuated										12 mm	12 mm	0.05 A 12 VDC	150 gf	0.25 mm	100000 Cycles	-10 °C	158 °F	LED White	6.5 mm
SparkFun Electronics COM-10441		Through Hole																Off-Mom	SPST-NO	PC Pin	Round Button	Illuminated	Top Actuated										12 mm	12 mm	0.05 A 12 VDC	150 gf	0.25 mm	100000 Cycles	-10 °C	158 °F	LED Orange	6.5 mm
SparkFun Electronics COM-09190		Through Hole																Off-Mom	SPST-NO	PC Pin	Standard	Non-Illuminated	Top Actuated										12 mm	12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.25

Description

General part information

- Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available
