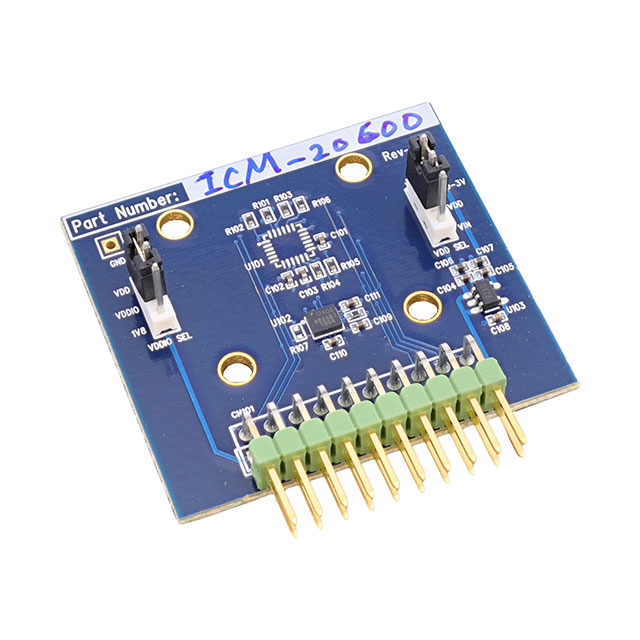

EV_ICM-20600

Active

EPCOS - TDK Electronics

EVAL BOARD

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

EVAL BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	EV_ICM-20600

Interface	Serial, I2C, SPI
Sensing Range	500 °/sec, 8 g, 250 °/sec, 2000 °/sec, 4 g, 2 g, 16 g, 1000 °/sec
Sensor Type	Accelerometer, 3 Axis, Gyroscope
Supplied Contents	Board(s)
Utilized IC / Part	ICM-20600
Voltage - Supply [Max]	3.45 V
Voltage - Supply [Min]	1.71 V

Part	Sensor Type	Contents	Sensing Range	Interface	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Sensing Range [Max]	Sensing Range [Min]
EPCOS - TDK Electronics EV_ICM-20609	3 Axis Accelerometer Gyroscope	Board(s)	2 g 4 g 8 g 16 g 250 °/sec 500 °/sec 1000 °/sec 2000 °/sec	I2C Serial SPI	Board(s)	3.45 V	1.71 V	ICM-20609
EPCOS - TDK Electronics EV_ICM-20601	3 Axis Accelerometer Gyroscope		8 g 16 g 32 g 1000 °/sec 2000 °/sec	I2C Serial SPI	Board(s)	3.45 V	1.71 V	ICM-20601	4 g 500 °/sec 4000 °/sec	-4000 °/sec -500 °/sec -4 g
EPCOS - TDK Electronics EV_ICM-20948	Accelerometer Gyroscope Magnetometer	Board(s)	4 g 8 g 16 g					ICM-20948	2 g 250 °/sec 500 °/sec 1000 °/sec 2000 °/sec 4900 µT	-4900 µT -2000 °/sec -1000 °/sec -500 °/sec -250 °/sec -2 g
EPCOS - TDK Electronics EV_ICM-20600	3 Axis Accelerometer Gyroscope		2 g 4 g 8 g 16 g 250 °/sec 500 °/sec 1000 °/sec 2000 °/sec	I2C Serial SPI	Board(s)	3.45 V	1.71 V	ICM-20600

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.68
Newark	Each	1	$ 33.75

General part information

ICM-20600 - Accelerometer, Gyroscope, 3 Axis Sensor Evaluation Board
