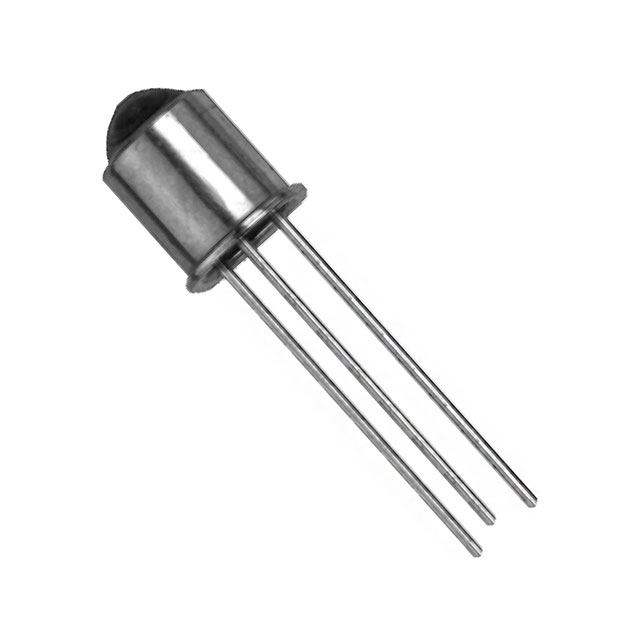

OP805TXV

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP TO206AA

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP TO206AA

Technical Specifications

Parameters and characteristics for this part

Specification	OP805TXV

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	Top View
Package / Case	TO-18-3 Metal Can, TO-206AA
Power - Max [Max]	250 mW
Viewing Angle	24 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	890 nm

Part	Power - Max [Max]	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Orientation	Current - Collector (Ic) (Max) [Max]	Mounting Type	Package / Case	Viewing Angle
TT Electronics/Optek Technology OP805SL	250 mW	890 nm	30 V	125 °C	-65 ░C	100 nA	Top View	50 mA	Through Hole	TO-18-3 Metal Can TO-206AA
TT Electronics/Optek Technology OP805TXV	250 mW	890 nm	30 V	125 °C	-65 ░C	100 nA	Top View	50 mA	Through Hole	TO-18-3 Metal Can TO-206AA	24 °
TT Electronics/Optek Technology OP805TX	250 mW	890 nm	30 V	125 °C	-65 ░C	100 nA	Top View	50 mA	Through Hole	TO-18-3 Metal Can TO-206AA	24 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 39.36

General part information

Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
