PE42724A-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 1.79GHZ 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE42724A-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 1.79GHZ 12QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42724A-Z |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 1.79 GHz |
| Frequency Range [Min] | 5 MHz |
| Impedance | 75 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

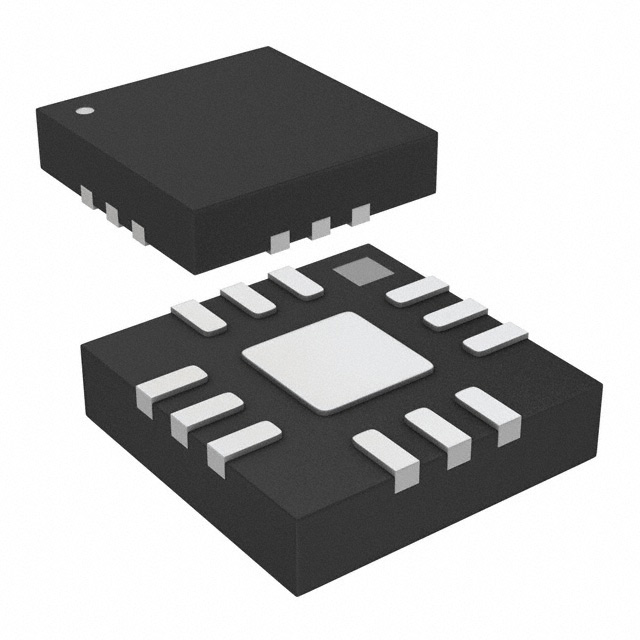

| Package / Case | 12-WFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (3x3) |
| Topology | Reflective |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.44 | |
| Digi-Reel® | 1 | $ 5.44 | ||
| Tape & Reel (TR) | 3000 | $ 2.54 | ||
Description
General part information
PE42724 Series
RF Switch IC SPDT 1.79 GHz 75Ohm 12-QFN (3x3)
