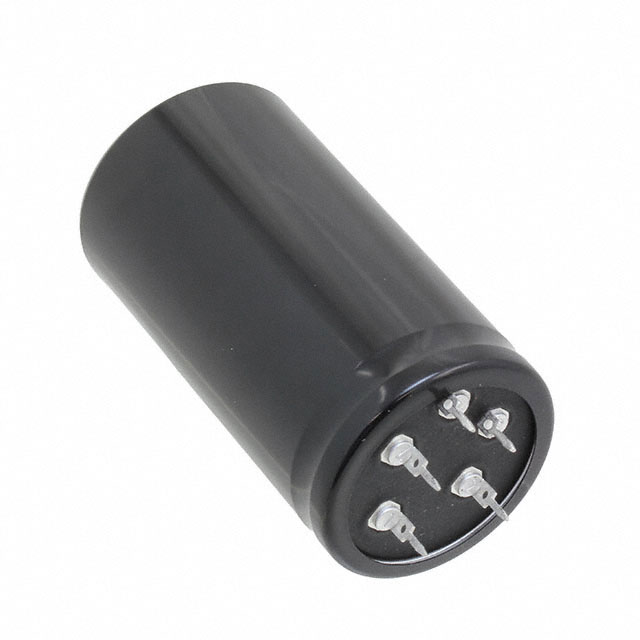

ALP20A102DE250

Active

KEMET

CAP ALUM 1000UF 250V SOLDER LUG

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1000UF 250V SOLDER LUG

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Package / Case	Lead Spacing	Lead Spacing	Polarization	Lifetime @ Temp.	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Mounting Type	Tolerance [Min]	Tolerance [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALP20A101BB400	85 °C	-40 °C	100 µF	Radial Can - Solder Lug	15 mm	0.591 in	Polar	15000 Hrs	General Purpose	30 mm	1.181 inches	400 V	Through Hole	-10 %	30 %	1.85 in	47 mm
KEMET ALP20A222BB063	85 °C	-40 °C	2200 µF	Radial Can - Solder Lug	15 mm	0.591 in	Polar	15000 Hrs	General Purpose	30 mm	1.181 inches	63 V	Through Hole	-10 %	30 %	1.85 in	47 mm
KEMET ALP20A102DE250	85 °C	-40 °C	1000 µF	Radial Can - Solder Lug	20 mm	0.787 in	Polar	5000 Hrs	General Purpose	40 mm	1.575 "	250 V	Through Hole	-10 %	30 %	3.031 in	77 mm
KEMET ALP20A682DD063	85 °C	-40 °C	6800 µF	Radial Can - Solder Lug	20 mm	0.787 in	Polar	5000 Hrs	General Purpose	40 mm	1.575 "	63 V	Through Hole	-10 %	30 %	2.244 "	57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1008	$ 7.24

General part information

1000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Solder Lug 5000 Hrs @ 85°C
