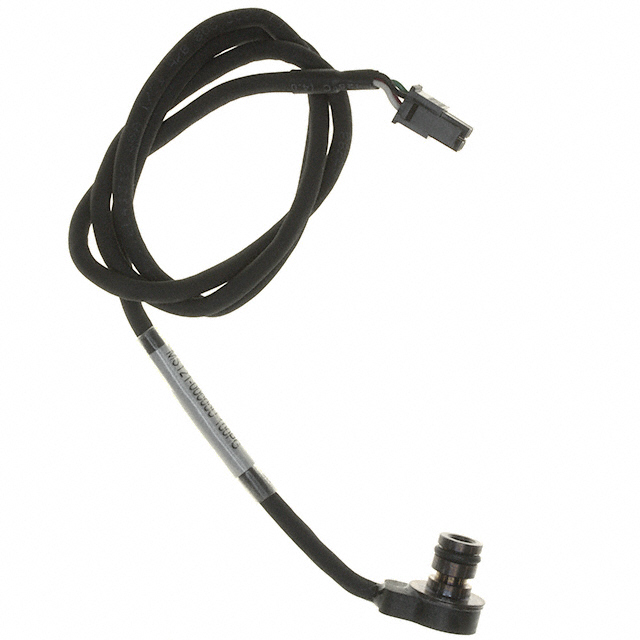

MS121-00000U-100PG
ActiveTE Connectivity Measurement Specialties
SENSOR 100PSIG O-RING 100MV 2'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS121-00000U-100PG |
|---|---|
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 1034.21 kPa |
| Maximum Pressure [Max] | 150 PSI |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | Cylinder, Threaded |
| Port Size | 0.36 " |
| Port Size | 9.14 mm |
| Port Size | Male |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Termination Style | Cable 2' |
| Voltage - Supply [Max] | 14 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 78.33 | |
| 10 | $ 65.97 | |||
| 25 | $ 61.84 | |||
| 100 | $ 59.78 | |||
Description
General part information
MS121 Series
SENSOR 100PSIG O-RING 100MV 2'
